TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

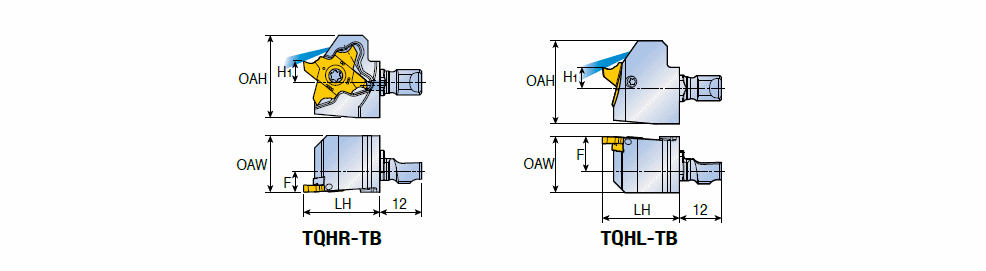

QE1 TQHR/L-TB : Modular head for parting and grooving with high-pressure coolant on Swiss machines

Designation	OAH	LH	OAW	H1	F		Tool typ	HAND	ClssID	MIID	S1	CCTMS	CCFMS	LTA	S2	IIC	GICAT	GIREM	giic	GICODE
QE1 TQHL 20-TB	23.7	22.0	16.00	6.000	9.00	X ~	MODULAR ~	L ~	71E01A0EAF067 ~	TQS 20-2.00-0.10-L ~	20.00~	IMC ~	16 ~	22.00~	2 ~	IS$$618385354172284 ~	6250318		0
QE1 TQHR 20-TB	23.7	22.0	16.20	6.000	7.00	X ~	MODULAR ~	R ~	71E01A0EAF067 ~	TQS 20-2.00-0.10-R ~	20.00~	IMC ~	16 ~	22.00~	2 ~	IS$$1195754368976992 ~	6226509		0
