4T-TE90-S-05 : 90° modular end mills with MAXI-RUSH adaptation & strong tangential type 4 cutting edge LPK(H)U 05 inserts

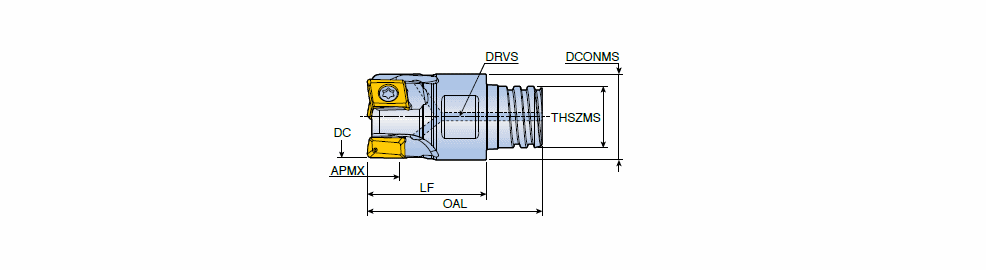

Designation	Tool sty	CICT	DC	DCONMS	LF	OAL	THSZMS	APMX	DRVS		PD		S1	Rd	Insert	Pocket	MIID	ClssID	K	CCTMS	CCFMS	IIC	IIC_2	LTA	ZEFF	ZEFP	GICAT
4T-TE90-210-S06-05	MODULAR ~	2	10.00	9.60	15.00	21.30	S06	4.60	8.0	O ~	F ~	0.01~	5.00~	1.80~	TSF-LP05 ~	~	LPHU 050204 PNR-ML	71E01A05D27A8 ~	90.0~	SAI ~	01 ~	IS$$1021751781424088 ~	IS$$1605127648008387 ~	14.95~	2~	2~	6324979
4T-TE90-312-S08-05	MODULAR ~	3	12.00	11.50	16.00	23.50	S08	4.60	10.0	O ~	F ~	0.01~	5.00~	1.50~	TSF-LP05 ~	~	LPHU 050204 PNR-ML	71E01A05D27A8 ~	90.0~	SAI ~	01 ~	IS$$1021751781424088 ~	IS$$1605127648008387 ~	15.95~	3~	3~	6324980
4T-TE90-416-S10-05	MODULAR ~	4	16.00	15.20	20.00	31.30	S10	4.60	13.0	O ~	F ~	0.03~	5.00~	1.00~	TSF-LP05 ~	~	LPHU 050204 PNR-ML	71E01A05D27A8 ~	90.0~	SAI ~	01 ~	IS$$1021751781424088 ~	IS$$1605127648008387 ~	19.95~	4~	4~	6324981

Matched with MAXI-RUSH holder
