TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

THFN-S : High feed modular end mills with MAXI-RUSH adaption & Small high feed HFN inserts for miniature components

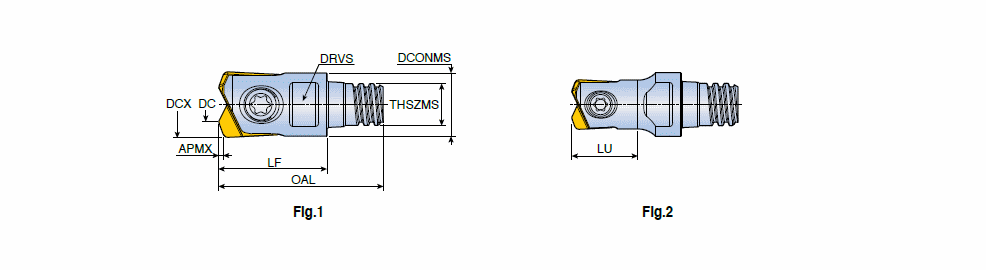

Designation	Tool sty	DC	DCX	CICT	DCONMS	LF	LU	OAL	THSZMS	APMX	DRVS	Fig.		S1	Rd	e	PD		Insert	Pocket	ClssID	MIID	CCTMS	CCFMS	FF/RN	LTA	ZEFF	ZEFP	ZNP	GICAT	GIREM	giic	GICODE
THFN 060-S05	MODULAR ~	3.00	6.00	2	7.60	13.00	7.8	19.70	S05	0.30	5.5	2	X ~	6.00~	2.00~	~	XF ~	0.01~	NR-HFN06 ~	HFN06 ~	71E01A05D27A8 ~	HFN 060-M	SAI ~	01 ~	FF ~	12.95~	2~	2~	2~	6336958		0
THFN 080-S05	MODULAR ~	4.00	8.00	2	7.60	13.00	-	19.70	S05	0.50	5.5	1	X ~	8.00~	2.50~	~	XF ~	0.05~	NR-HFN06 ~	HFN08 ~	71E01A05D27A8 ~	HFN 080-M	SAI ~	01 ~	FF ~	12.95~	2~	2~	2~	6336957		0

Matched with MAXI-RUSH holder
