TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

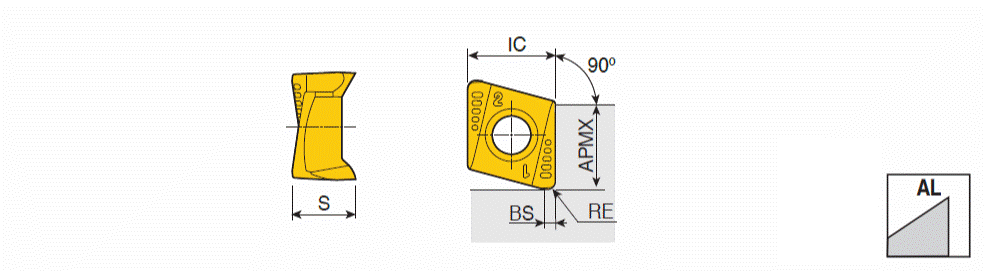

4NHT 11-AL : Double-sided ground & polished inserts with high positive 4 helical cutting edges & wiper for 90° shoulders of aluminum & non-ferrous materials

Designation	RE	S	APMX	BS	IC	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	CE	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
4NHT 110608R-AL	0.80	8.10	10.50	1.00	10.70	11.00~	3.50	10.00	0.500	0.100	M4 ~	C4M-4N11 ~	11~	~	71DD68D301C30 ~	G10 ~	AL ~	K10 ~	IS$$688137628573336 ~	4NHT 11 ~	0~	6226865		1		K10
