TaeguTec Cutting Tools - Metal Working Tools - Turning -

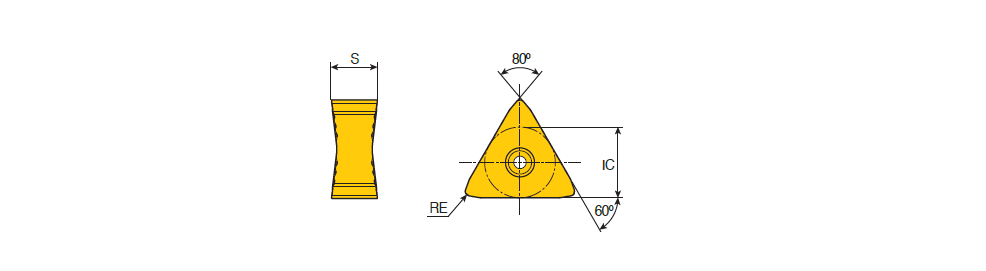

TNMV-BM : Double-sided 6 corner negative triangular inserts with 80° corner angle for medium cut of multi directional & high feed steel turning

Designation	IC	S	RE	CB	alpha	a	ap (min)	ap (max)	ft (min)	ft (max)	CE	Precise	Utility	l	SC	ClssID	AN	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TNMV 210908-BM	12.50	9.00	0.80	BM ~	70~	0.00~	0.70	2.00	0.60	1.20	4~	~	U ~	14.84~	T ~	71DDA089C8D1E ~	0.0~	CVD ~	8115B ~	2~	ISO$TN2109082NB$$08 ~	210908 ~	TNMV ~	Y ~	21 ~	6242021		2		TT8125B TT8115B

ap & ft is backward turning conditions
Forward turning conditions: ap(min)=0.5, ap(max)=2.0, ft(min)=0.20, ft(max)=0.60
