TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

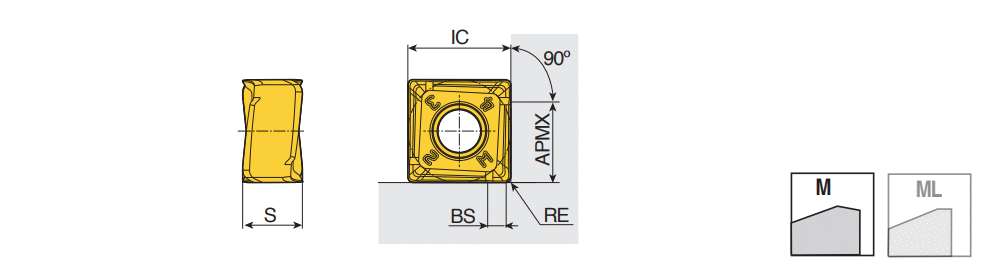

SQKU 07-PNR-ML : Double-sided Square inserts with economical 8 cutting edges for 90° shoulder milling without mismatch for general applications

Designation	IC	S	APMX	BS	RE	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	CE	SC	ClssID	ESP	CB	CEDC	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SQKU 070308 PNR-ML	7.00	4.16	5.00	0.90	0.80	7.00~	1.00	4.00	0.200	0.100	~	~	8~	S ~	71DD68D829217 ~	U40 ~	M ~	8~	TT3535~	IS$$1094233105811853 ~	SQKU 07 ~	0~	6276739		4		TT8080 TT3535 TT9080 TT6080
