TaeguTec Cutting Tools - Metal Working Tools - Turning -

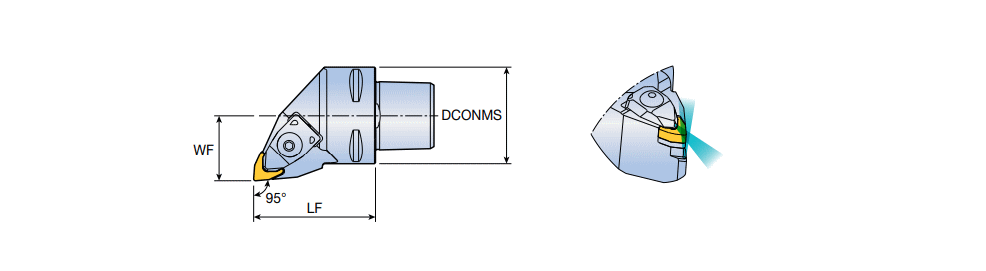

C*-TWLNR/L-TB : C-ADAPTER T-holders with 2-way high-pressure coolant for 95° approach angle & negative 80° trigon inserts

Designation	DCONMS	WF	LF	d	t	Kr	K	CL	Tool typ	R/L	ClssID	MIID	IIC	GICAT
C4-TWLNL 27050-0604-TB	40.00	27.00	50.00	9.52~	4.76~	95~	95.0~	T-HOLDER ~	C-ADAPTER ~	L	71E01A0EAF067 ~	WNMX 060408 MT	IS$$1880481947030820 ~	6234567
C4-TWLNR 27050-0604-TB	40.00	27.00	50.00	9.52~	4.76~	95~	95.0~	T-HOLDER ~	C-ADAPTER ~	R	71E01A0EAF067 ~	WNMX 060408 MT	IS$$1880481947030820 ~	6234566
C5-TWLNL 35060-0604-TB	50.00	35.00	60.00	9.52~	4.76~	95~	95.0~	T-HOLDER ~	C-ADAPTER ~	L	71E01A0EAF067 ~	WNMX 060408 MT	IS$$1880481947030820 ~	6234569
C5-TWLNR 35060-0604-TB	50.00	35.00	60.00	9.52~	4.76~	95~	95.0~	T-HOLDER ~	C-ADAPTER ~	R	71E01A0EAF067 ~	WNMX 060408 MT	IS$$1880481947030820 ~	6234568
