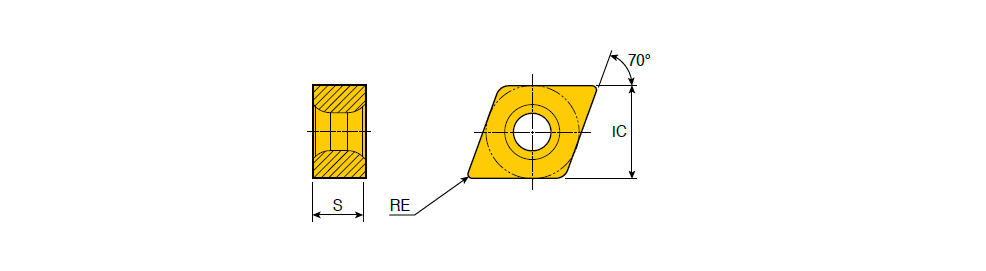

XNMV 1105..R/L-BS : 70° corner angle double-sided 4 cutting edge insert for deepdepth of cut forward turning and high feed back turning in super alloy steel machining.

Designation	IC	S	RE	R/L	l	CB	alpha	a	ap (min)	ap (max)	ft (min)	ft (max)	CE	Precise	Utility	SC	ClssID	AN	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
XNMV 110508L-BS	11.11	5.56	0.80	L ~	11.82~	BS ~	70~	0.00~	0.50	1.80	0.40	0.80	4~	~	U ~	X ~	71DDA089C8D1E ~	0.0~	CVD ~	8115B ~	2~	ISO$XN1105082LB$$08 ~	3.53.5 ~	XNMV ~	Y ~	11 ~	6245903		4		TT3020 TT8125B TT3010 TT8115B
XNMV 110508R-BS	11.11	5.56	0.80	R ~	11.82~	BS ~	70~	0.00~	0.50	1.80	0.40	0.80	4~	~	U ~	X ~	71DDA089C8D1E ~	0.0~	CVD ~	8115B ~	2~	ISO$XN1105082RB$$08 ~	3.53.5 ~	XNMV ~	Y ~	11 ~	6245904		4		TT3020 TT8125B TT3010 TT8115B

ap & ft are backward turning conditions
Forward turning conditions: ap(min)=1.0, ap(max)=4.0, ft(min)=0.15, ft(max)=0.40
Apply L insert to L holder and R boring bar
Apply R insert to R holder and L boring bar
