Home Page > Turning > > QH40Y-TZXNN-TB

Turning
Main Application

Related Insert Related Holder

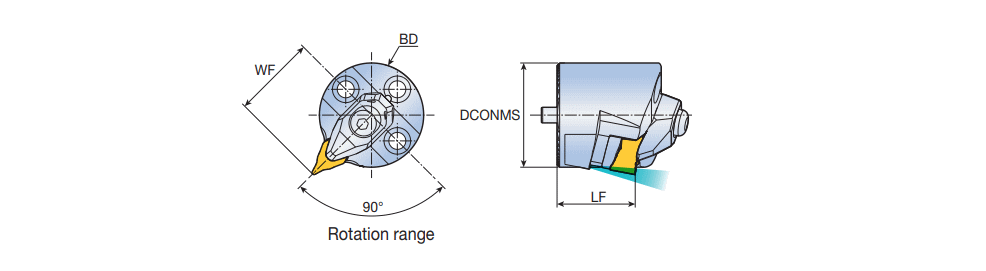

QH40Y-TZXNN-TB : Y-axis turning heads with ZNMV 1410...Y-BF inserts for high productivity

Designation	DCONMS	LF	WF	BD		HAND	d	t	Kr	K	CL	Tool typ	ClssID	MIID	CCTMS	CCFMS	LTA	IIC	GICAT	GIREM	giic	GICODE
QH40Y-TZXNN-1410-TB	40.00	30.00	32.00	40.00	O ~	~	10.50~	10.00~	0~	0.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	ZNMV 141008Y-BF	CMS ~	01 ~	30.00~	IS$$748531464643187 ~	6229439		0

Only ZNMV 1410...Y-BF inserts available
