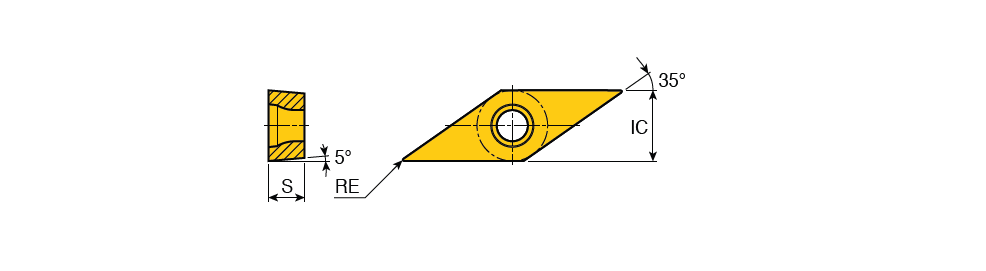

VBMX-FG : Positive 35° Rhombic inserts for finishing machining of steels & stainless steels with 5° clearance

Designation	IC	S	RE	l	CB	alpha	d1	a	ap (min)	ap (max)	ft (min)	ft (max)	CE	Precise	Utility	SC	ClssID	S1	AN	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VBMX 160402 FG	9.52	4.76	0.20	16.00~	FG ~	0~	0.00~	0.00~	0.30	1.50	0.05	0.20	2~	~	~	V ~	71DD68D301C30 ~	2.00~	5.0~	CVD ~	8115B ~	3~	ISO$VB1604023NA$$02 ~	330.5 ~	VBMX ~	Y ~	16 ~	6247168	2	TT5080 TT8115B
VBMX 160404 FG	9.52	4.76	0.40	16.00~	FG ~	0~	0.00~	0.00~	0.50	1.50	0.07	0.20	2~	~	~	V ~	71DD68D301C30 ~	1.00~	5.0~	Cermet ~	8115B ~	3~	ISO$VB1604043NA$$04 ~	331 FG ~	VBMX ~	Y ~	16 ~	6247169	3	TT5080 TT8115B CT3000
VBMX 160408 FG	9.52	4.76	0.80	16.00~	FG ~	0~	0.00~	0.00~	0.70	2.00	0.10	0.25	2~	~	~	V ~	71DD68D301C30 ~	1.00~	5.0~	Cermet ~	8115B ~	3~	ISO$VB1604083NA$$08 ~	332 FG ~	VBMX ~	Y ~	16 ~	6245207	4	TT3020 TT5080 TT8115B CT3000

Insert can also be assembled onto an ISO holder
