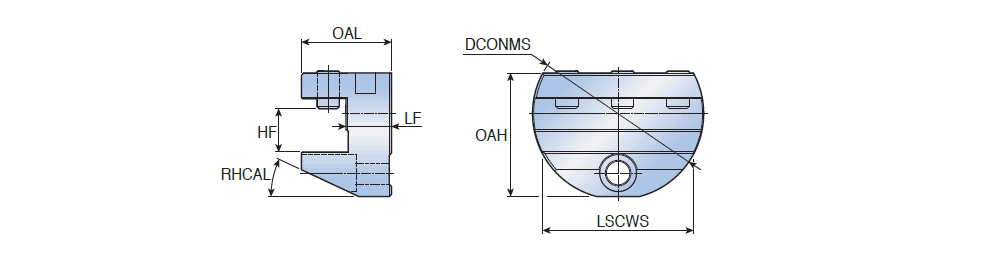

QH80-VH : Perpendicular adaptor for external square-shank tools

Designation	DCONMS	LF	HF	OAL	OAH	LSCWS	RHCAL	ClssID	LTA	IIC	GICAT	GIREM	giic	GICODE
QH80-2020-VH	77.00	20.50	20.0	40.50	55.5	67.8	25.0	71EAD3871D313 ~	40.50~	~	6247558		0

Used with external 20x20 square holders
Since there is a deviation in the DMIN value for each holder,
it is recommended to use the boring head after checking for interference with theworkpiece.
