TaeguTec Cutting Tools - Metal Working Tools - Turning -

QH-SDUCR/L-VH : Exchangeable screw type boring heads for anti-vibration deep boring machining

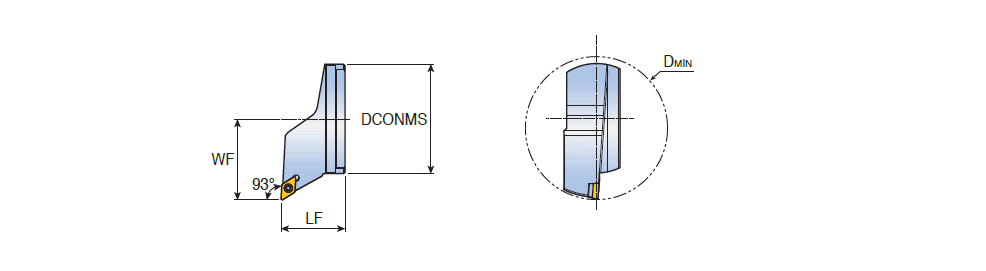

Designation	DCONMS	LF	WF	DMIN		HAND	d	t	Kr	K	CL	Tool typ	ClssID	MIID	LTA	IIC	IIC_2	IIC_3	IIC_4	IIC_5	GICAT	GIREM	giic	GICODE
QH80-SDUCL-11-VH	77.00	45.00	57.00	100.00	X ~	L ~	9.52~	3.97~	30~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DCMT 11T308 MT	45.00~	IS$$1010370168438665 ~	IS$$1023930991875314 ~	IS$$1161173142749010 ~	IS$$1429709850404096 ~	IS$$1519702245489130 ~	6247555		0
QH80-SDUCR-11-VH	77.00	45.00	57.00	100.00	X ~	R ~	9.52~	3.97~	30~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DCMT 11T308 MT	45.00~	IS$$1010370168438665 ~	IS$$1023930991875314 ~	IS$$1161173142749010 ~	IS$$1429709850404096 ~	IS$$1519702245489130 ~	6247554		0
