TaeguTec Cutting Tools - Metal Working Tools - Turning -

QH-SVLCR/L-VH : Exchangeable screw type boring heads for anti-vibration deep boring machining

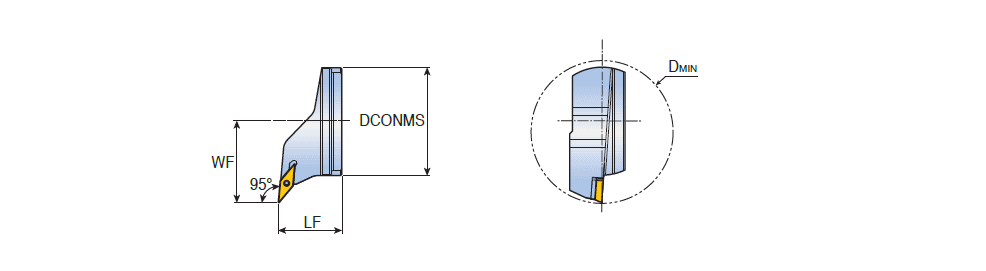

Designation	DCONMS	LF	WF	DMIN		HAND	d	t	Kr	K	CL	Tool typ	ClssID	MIID	LTA	IIC	IIC_2	GICAT	GIREM	giic	GICODE
QH80-SVLCL-16-VH	77.00	45.00	57.00	100.00	X ~	L ~	9.52~	4.76~	30~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	VCGT 160408 FL	45.00~	IS$$884209950608906 ~	IS$$974204253037744 ~	6247557		0
QH80-SVLCR-16-VH	77.00	45.00	57.00	100.00	X ~	R ~	9.52~	4.76~	30~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	VCGT 160408 FL	45.00~	IS$$884209950608906 ~	IS$$974204253037744 ~	6247556		0
