TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

TFM90AV-R-10 : 90° Face mills with AVK(C)T inserts for shoulder milling

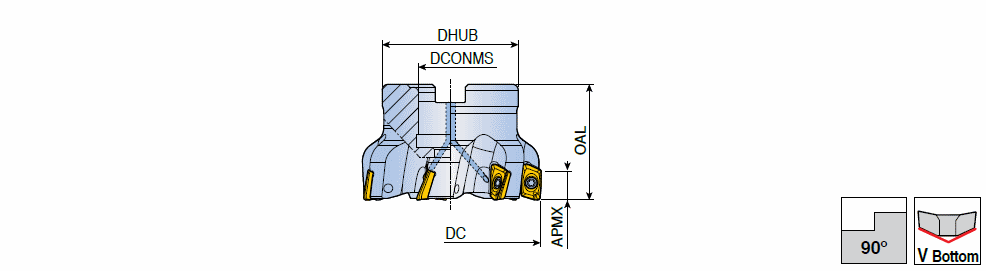

Designation	Tool sty	DC	CICT	DCONMS	DHUB	OAL	APMX	Arbor			Mtg. Ref	S1	D3	Rd	K	R/L	PD	Insert	MIID	ClssID	CCTMS	CCFMS	FF/RN	IIC	IIC_2	LTA	ZEFF	ZEFP	GICAT
TFM90AV-540-16R-10	FACE MILL ~	40.00	5	16.00	38.00	40.00	10.00	A	0.20	O ~	SH M8x30	10.00~	0.00~	2.10~	90.0~	~	F ~	WM-AV10 ~	AVKT 1004 PER-M	71E01A05B627B ~	FDA ~	02 ~	FF ~	IS$$1126565267364198 ~	IS$$1281800253694311 ~	40.00~	5~	5~	6234539
TFM90AV-550-22R-10	FACE MILL ~	50.00	5	22.00	45.00	40.00	10.00	A	0.30	O ~	SH M10x30	10.00~	0.00~	1.60~	90.0~	~	RF ~	WM-AV10 ~	AVKT 1004 PER-M	71E01A05B627B ~	FDA ~	02 ~	FF ~	IS$$1126565267364198 ~	IS$$1281800253694311 ~	40.00~	5~	5~	6218947
TFM90AV-750-22R-10	FACE MILL ~	50.00	7	22.00	45.00	40.00	10.00	A	0.30	O ~	SH M10x30	10.00~	0.00~	1.60~	90.0~	~	F ~	WM-AV10 ~	AVKT 1004 PER-M	71E01A05B627B ~	FDA ~	02 ~	FF ~	IS$$1126565267364198 ~	IS$$1281800253694311 ~	40.00~	7~	7~	6218532
TFM90AV-763-22R-10	FACE MILL ~	63.00	7	22.00	47.00	40.00	10.00	A	0.50	O ~	SH M10x30	10.00~	0.00~	1.20~	90.0~	~	RF ~	WM-AV10 ~	AVKT 1004 PER-M	71E01A05B627B ~	FDA ~	02 ~	FF ~	IS$$1126565267364198 ~	IS$$1281800253694311 ~	40.00~	7~	7~	6234541

-When using the "AVKT 1004R-HF" insert, the cutter body needs to be modified to a corner radius of 3.0 mm
-When using "AVKT 10" insert with a corner radius of 2.0 mm or bigger, the cutter body corner radius should be adjusted to insert 'R' +0.2mm
