TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

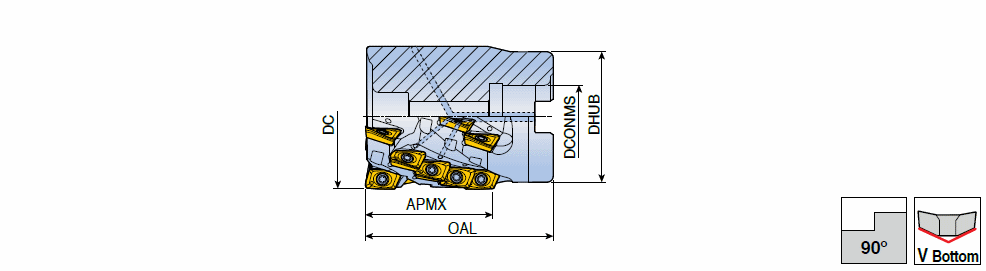

TES-AV10 : Extended flute shell mills with AVK(C)T inserts for shoulder milling

Designation	Tool sty	DC	CICT	NOF	DCONMS	DHUB	OAL	APMX			Mtg. Ref	S1	Rd	K	R/L	PD	Insert	MIID	ClssID	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT	GIREM	giic	GICODE
TES D40-35-16R-AV10-4F	EXTENDED FLUTE ~	40.00	16	4	16.00	38.00	55.00	35.00	O ~	0.29	SH M8X40	10.00~	2.10~	90.0~	~	C ~	WM-AV10 ~	AVKT 1004 PER-M	71E01A05B627B ~	FDA ~	02 ~	IS$$1281800253694311 ~	55.00~	16~	16~	6247843		0
TES D50-44-22R-AV10-5F	EXTENDED FLUTE ~	50.00	25	5	22.00	45.00	65.00	44.00	O ~	0.55	SH M10X50	10.00~	1.60~	90.0~	~	C ~	WM-AV10 ~	AVKT 1004 PER-M	71E01A05B627B ~	FDA ~	02 ~	IS$$1281800253694311 ~	65.00~	25~	25~	6247844		0
