TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

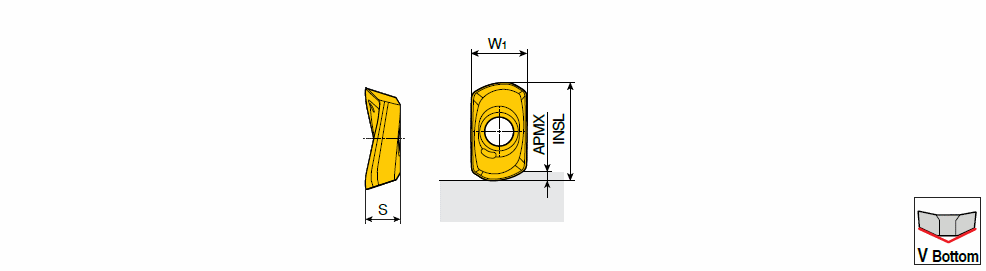

AVKT 1004-HF : High productivity single-sided, two-corner inserts with V-shape bottom contact for high feed milling

Designation	INSL	W1	S	APMX	S1	S2	CE	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	CB	CEDC	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
AVKT 1004R-HF	11.60	6.60	4.40	1.00	10.00~	~	0~	WM-AV 10 ~	0.10	1.00	0.800	0.300	M8 ~	A ~	71DD68D91938A ~	U70 ~	HF ~	2~	8525B ~	IS$$1126565267364198 ~	AVKT 10-HF ~	0~	6279522		4		TT8080 TT8525B TT3535 TT9080
