TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

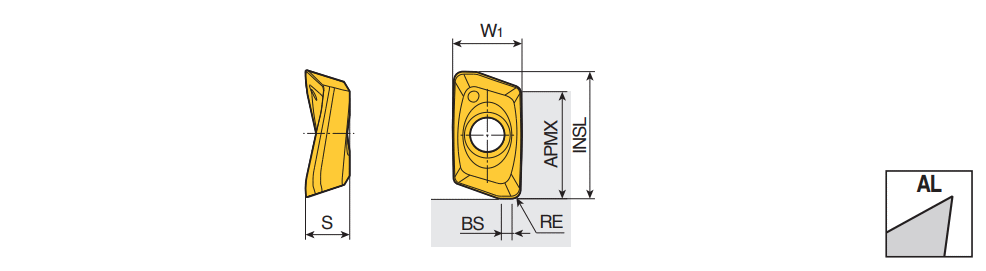

AVCT 1004-AL : High productivity single-sided, two-corner inserts with V-shape bottom contact for shoulder milling

Designation	INSL	W1	S	APMX	BS	RE	S1	S2	CE	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	CB	CEDC	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Grade & Vc Click on grade for cutting speed value
AVCT 100432R-AL	11.30	6.69	3.98	9.50	-	3.20	10.00~	~	0~	WM-AV 10 ~	2.50	8.00	0.500	0.100	M8 ~	A ~	71DD68D91938A ~	G10 ~	AL ~	2~	K10 ~	IS$$1281800253694311 ~	AVCT 10 ~	0~	6258958	1	K10
AVCT 100430R-AL	11.50	6.76	4.05	9.60	-	3.00	10.00~	~	0~	WM-AV 10 ~	2.50	8.00	0.500	0.100	M8 ~	A ~	71DD68D91938A ~	G10 ~	AL ~	2~	K10 ~	IS$$1281800253694311 ~	AVCT 10 ~	0~	6218011	1	K10
AVCT 100416R-AL	11.60	9.80	4.43	9.80	1.00	1.60	10.00~	~	0~	WM-AV 10 ~	2.50	8.00	0.500	0.100	M8 ~	A ~	71DD68D91938A ~	G10 ~	AL ~	2~	K10 ~	IS$$1281800253694311 ~	AVCT 10 ~	0~	6262050	1	K10
AVCT 100420R-AL	11.80	6.76	4.34	9.80	0.70	2.00	10.00~	~	0~	WM-AV 10 ~	2.50	8.00	0.500	0.100	M8 ~	A ~	71DD68D91938A ~	G10 ~	AL ~	2~	K10 ~	IS$$1281800253694311 ~	AVCT 10 ~	0~	6218010	1	K10
AVCT 100404R-AL	12.50	6.79	4.51	10.10	1.27	0.40	10.00~	~	0~	WM-AV 10 ~	2.50	8.00	0.500	0.100	M8 ~	A ~	71DD68D91938A ~	G10 ~	AL ~	2~	K10 ~	IS$$1281800253694311 ~	AVCT 10 ~	0~	6248350	1	K10
AVCT 1004 PER-AL	12.52	6.79	4.44	10.10	0.87	0.80	10.00~	~	0~	WM-AV 10 ~	2.50	8.00	0.500	0.100	M8 ~	A ~	71DD68D91938A ~	G10 ~	AL ~	2~	K10 ~	IS$$1281800253694311 ~	AVCT 10 ~	0~	6218009	1	K10
