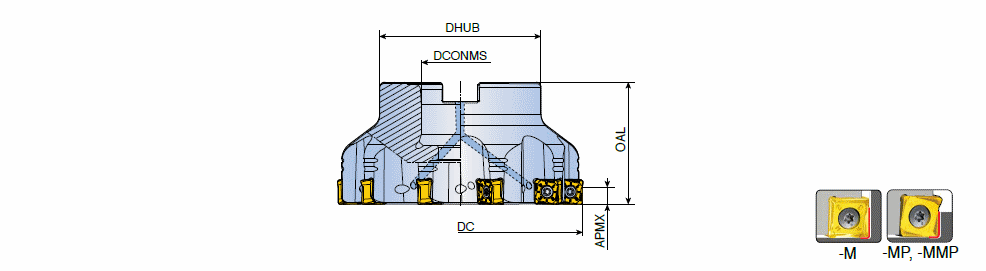

8D-TF90-R-10 : 90° Face mills with 8 cutting edges of double-sided Square inserts SQK(H)U 10 for general milling

Designation	S2	Tool sty	DC	CICT	DCONMS	DHUB	OAL	APMX	d1		Arbor		Mtg. Ref	S1	D3	Rd	K	R/L	PD	Insert	MIID	ClssID	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT
8D-TF90-440-16R-10	1 ~	FACE MILL ~	40.00	4	16.00	38.00	40.00	7.00	0.00~	O ~	A	0.27	SH M8x25	10.00~	0.00~	0.00~	90.0~	~	RF ~	C8M-SQ10 ~	SQKU 100408 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$700834661527616 ~	40.00~	4~	4~	6247282
8D-TF90-550-22R-10	2 ~	FACE MILL ~	50.00	5	22.00	45.00	40.00	7.00	0.00~	O ~	A	0.31	SH M10x30	10.00~	0.00~	0.00~	90.0~	~	RF ~	C8M-SQ10 ~	SQKU 100408 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$700834661527616 ~	40.00~	5~	5~	6241961
8D-TF90-663-22R-10	3 ~	FACE MILL ~	63.00	6	22.00	47.00	40.00	7.00	0.00~	O ~	A	0.54	SH M10x30	10.00~	0.00~	0.00~	90.0~	~	RF ~	C8M-SQ10 ~	SQKU 100408 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$700834661527616 ~	40.00~	6~	6~	6247284
8D-TF90-863-22R-10	4 ~	FACE MILL ~	63.00	8	22.00	47.00	40.00	7.00	0.00~	O ~	A	0.50	SH M10x30	10.00~	0.00~	0.00~	90.0~	~	F ~	C8M-SQ10 ~	SQKU 100408 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$700834661527616 ~	40.00~	8~	8~	6247285
8D-TF90-880-27R-10	5 ~	FACE MILL ~	80.00	8	27.00	58.00	50.00	7.00	0.00~	O ~	A	1.05	SH M12x35	10.00~	0.00~	0.00~	90.0~	~	RF ~	C8M-SQ10 ~	SQKU 100408 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$700834661527616 ~	50.00~	8~	8~	6247286
8D-TF90-1080-27R-10	6 ~	FACE MILL ~	80.00	10	27.00	58.00	50.00	7.00	0.00~	O ~	A	1.07	SH M12x35	10.00~	0.00~	0.00~	90.0~	~	F ~	C8M-SQ10 ~	SQKU 100408 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$700834661527616 ~	50.00~	10~	10~	6247287
8D-TF90-10100-32R-10	7 ~	FACE MILL ~	100.00	10	32.00	66.00	50.00	7.00	0.00~	O ~	A	1.62	SH M12x35	10.00~	0.00~	0.00~	90.0~	~	F ~	C8M-SQ10 ~	SQKU 100408 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$700834661527616 ~	50.00~	10~	10~	6236369
8D-TF90-14100-32R-10	8 ~	FACE MILL ~	100.00	14	32.00	66.00	50.00	7.00	0.00~	O ~	A	1.59	SH M12x35	10.00~	0.00~	0.00~	90.0~	~	XF ~	C8M-SQ10 ~	SQKU 100408 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$700834661527616 ~	50.00~	14~	14~	6247290
8D-TF90-12125-40R-10	9 ~	FACE MILL ~	125.00	12	40.00	85.00	63.00	7.00	0.00~	O ~	A	3.29	SH M20x40	10.00~	0.00~	0.00~	90.0~	~	RF ~	C8M-SQ10 ~	SQKU 100408 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$700834661527616 ~	63.00~	12~	12~	6247291
8D-TF90-16125-40R-10	10 ~	FACE MILL ~	125.00	16	40.00	85.00	63.00	7.00	0.00~	O ~	A	3.35	SH M20x40	10.00~	0.00~	0.00~	90.0~	~	F ~	C8M-SQ10 ~	SQKU 100408 PNR-M	71E01A05B627B ~	FDA ~	02 ~	IS$$700834661527616 ~	63.00~	16~	16~	6247292

-Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
-When applying SQHU insert, APMX is 6.5 mm.
