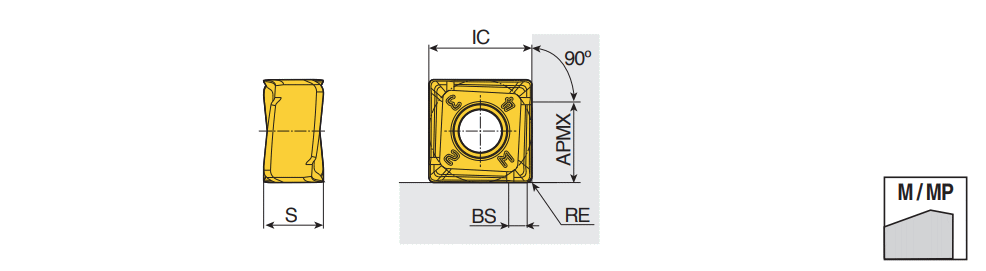

SQKU 10-PNR-M : Double-sided Square inserts with 8 cutting edges for 90° shoulder milling & multistep machining without mismatch for general applications

Designation	IC	S	APMX	BS	RE	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	CE	SC	ClssID	ESP	CB	CEDC	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SQKU 100416 PNR-M	10.00	5.60	7.00	0.45	1.60	10.00~	1.50	5.50	0.200	0.100	~	~	8~	S ~	71DD68D829217 ~	U60 ~	M ~	8~	TT6080~	~	SQKU 10 ~	0~	6260490		2		TT9080 TT6080
SQKU 100408 PNR-M	10.00	5.80	7.00	1.10	0.80	10.00~	1.50	5.50	0.200	0.100	~	~	8~	S ~	71DD68D829217 ~	U60 ~	M ~	8~	8525B ~	IS$$700834661527616 ~	SQKU 10 ~	0~	6281367		5		TT8080 TT8525B TT9080 TT6080 TT2510
