TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

4T-TSM-W-05 : Slotting end mill cutters with LXHU tangential inserts

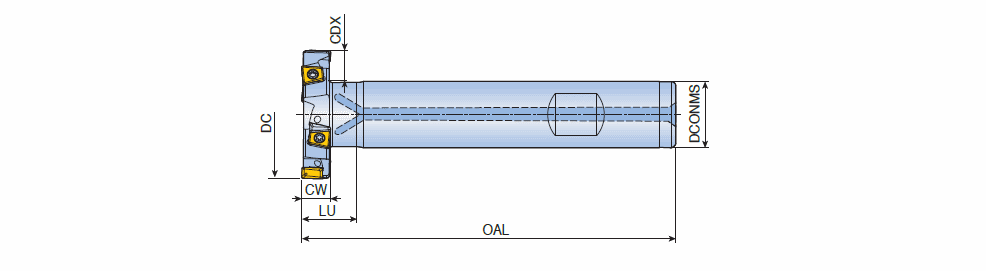

Designation	Tool sty	CW	CICT	DC	DCONMS	OAL	LU	CDX		S1	Rd	K		R/L	Arbor	PD	Insert	Shank	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	GICAT
4T-TSM-D16-07-W12-05	ENDMILL ~	7.00	2	16.00	12.00	90.00	12.0	3.00	O ~	5.00~	0.00~	0.0~	0.08~	~	~	RC ~	MSF-LX05 ~	W ~	71EF07E037025 ~	LXHU 05-04-ML	ZYL ~	10 ~	IS$$349668379758264 ~	45.00~	6245730
4T-TSM-D20-07-W12-05	ENDMILL ~	7.00	4	20.00	12.00	90.00	13.0	4.00	O ~	5.00~	0.00~	0.0~	0.08~	~	~	F ~	MSF-LX05 ~	W ~	71EF07E037025 ~	LXHU 05-04-ML	ZYL ~	10 ~	IS$$349668379758264 ~	45.00~	6245731
4T-TSM-D25-07-W12-05	ENDMILL ~	7.00	4	25.00	12.00	90.00	13.0	6.50	O ~	5.00~	0.00~	0.0~	0.09~	~	~	RF ~	MSF-LX05 ~	W ~	71EF07E037025 ~	LXHU 05-04-ML	ZYL ~	10 ~	IS$$349668379758264 ~	45.00~	6245732
4T-TSM-D32-07-W16-05	ENDMILL ~	7.00	6	32.00	16.00	90.00	13.0	8.00	O ~	5.00~	0.00~	0.0~	0.14~	~	~	XF ~	MSF-LX05 ~	W ~	71EF07E037025 ~	LXHU 05-04-ML	ZYL ~	10 ~	IS$$349668379758264 ~	42.00~	6226008
4T-TSM-D40-07-W16-05	ENDMILL ~	7.00	8	40.00	16.00	105.00	13.0	12.00	O ~	5.00~	0.00~	0.0~	0.19~	~	~	XF ~	MSF-LX05 ~	W ~	71EF07E037025 ~	LXHU 05-04-ML	ZYL ~	10 ~	IS$$349668379758264 ~	57.00~	6245733
