TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

4T-TE90-TR-05 : Quick changeable face milling heads with LPK(H)U tangential inserts

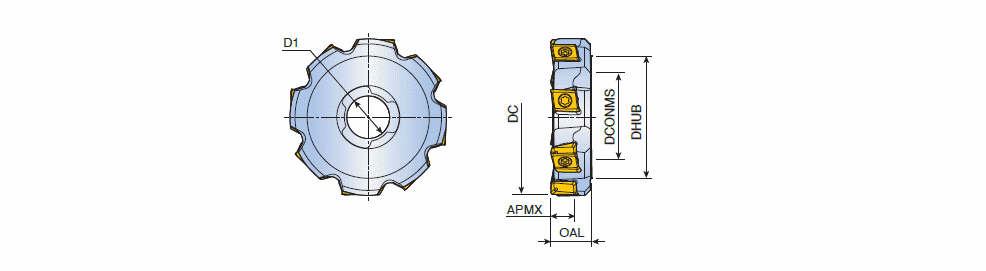

Designation	Tool sty	CICT	DC	DCONMS	D1	DHUB	OAL	APMX			MIID	S1	Insert	CCTMS	CCFMS	ClssID	IIC	IIC_2	LTA	PD	ZEFF	ZEFP	ZNP	GICAT
4T-TE90-625-TR15-05	DISK TYPE ~	6	25.00	15.00	8.40	19.00	8.00	4.60	X	0.02	LPHU 050204 PNR-ML	5.00~	TSF-LP05 ~	SPI ~	01 ~	71EF07E037025 ~	IS$$1021751781424088 ~	IS$$1605127648008387 ~	8.00~	XF ~	6~	6~	6~	6236122
4T-TE90-832-TR15-05	DISK TYPE ~	8	32.00	15.00	8.40	24.00	8.00	4.60	X	0.04	LPHU 050204 PNR-ML	5.00~	TSF-LP05 ~	SPI ~	01 ~	71EF07E037025 ~	IS$$1021751781424088 ~	IS$$1605127648008387 ~	8.00~	XF ~	8~	8~	8~	6226009
4T-TE90-1040-TR17-05	DISK TYPE ~	10	40.00	17.00	9.80	31.00	10.00	4.60	X	0.07	LPHU 050204 PNR-ML	5.00~	TSF-LP05 ~	SPI ~	01 ~	71EF07E037025 ~	IS$$1021751781424088 ~	IS$$1605127648008387 ~	10.00~	XF ~	10~	10~	10~	6236123
