Home Page > Milling & Solid End mills > > LXHU 05-ML

Milling & Solid End mills
Main Application

Related Tool

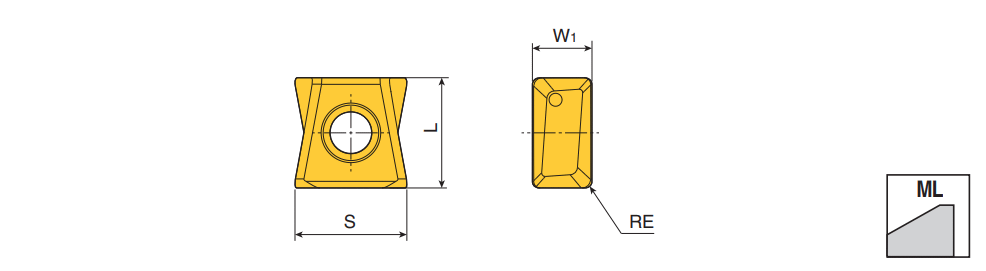

LXHU 05-ML : Tangential inserts of 4 cutting edges for slot milling

Designation	L	W1	S	RE	S1	fz (max)	fz (min)	SF	Insert	CE	SC	ClssID	ESP	CB	CEDC	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
LXHU 05-04-ML	5.00	2.70	5.00	0.40	5.00~	0.080	0.040	M5.5 ~	TSF-LX05 ~	4~	L ~	71DDA089C8D1E ~	G40 ~	ML ~	4~	TT8080~	IS$$349668379758264 ~	LXHU 05 ~	0~	6245742		2		TT8080 TT9080
