TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

NFLB : Lens barrel type insert for finishing in profile machining with large cutting edges for high productivity

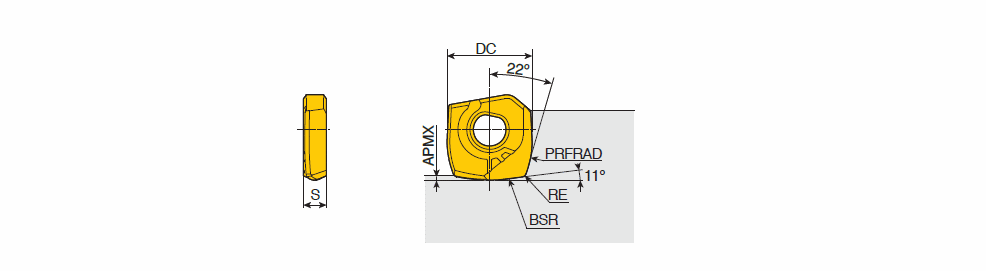

Designation	DC	S	APMX	RE	BSR	PRFRAD	S2	Insert	ap (min)	ap (max)	fz (max)	fz (min)	CBMD	SF	SC	ClssID	CE	ESP	GRDMFG	IIC	WEP	GICAT	giic	Grade & Vc Click on grade for cutting speed value
NFLB 120-L24-B12	12.00	3.20	0.40	0.70	24.00	12.00	12 ~	FLB-12 ~	-	-	0.150	0.080	B ~	~	L ~	71DDA089C8D1E ~	2~	G20 ~	TT5515~	IS$$125109954190776 ~	0~	6240763	1	TT5515
NFLB 160-L32-B16	16.00	4.20	0.60	0.80	32.00	16.00	16 ~	FLB-16 ~	-	-	0.150	0.080	B ~	~	L ~	71DDA089C8D1E ~	2~	G20 ~	TT5515~	IS$$115429599161760 ~	0~	6240764	1	TT5515
NFLB 200-L40-B20	20.00	5.20	0.70	1.00	40.00	20.00	20 ~	FLB-20 ~	-	-	0.150	0.080	B ~	~	L ~	71DDA089C8D1E ~	2~	G20 ~	TT5515~	IS$$106172470573365 ~	0~	6240765	1	TT5515
NFLB 250-L50-B25	25.00	6.20	0.90	1.30	50.00	25.00	25 ~	FLB-25 ~	-	-	0.150	0.080	B ~	~	L ~	71DDA089C8D1E ~	2~	G20 ~	TT5515~	IS$$106076507475834 ~	0~	6240766	1	TT5515
NFLB 300-L60-B30	30.00	7.20	1.10	1.50	60.00	30.00	30 ~	FLB-30 ~	-	-	0.200	0.080	B ~	~	L ~	71DDA089C8D1E ~	2~	G20 ~	TT5515~	IS$$125141389645560 ~	0~	6240767	1	TT5515
