TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

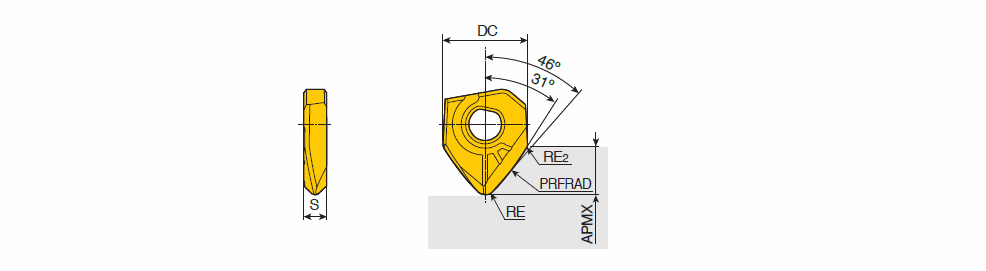

NFCB : Chamfer barrel type insert with a corner R edge and large cutting edges for high productivity

Designation	DC	S	APMX	RE	PRFRAD	RE_2	S2	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	CE	ESP	CB	GRDMFG	IIC	WEP	GICAT	giic	Grade & Vc Click on grade for cutting speed value
NFCB 080-R20	8.00	2.20	4.30	1.00	20.00	0.60	08 ~	FCB-08 ~	-	-	0.120	0.050	~	V ~	71DDA089C8D1E ~	2~	G20 ~	B ~	TT5515~	~	0~	6240821	1	TT5515
NFCB 100-R25	10.00	2.70	5.40	1.20	25.00	0.80	10 ~	FCB-10 ~	-	-	0.120	0.050	~	V ~	71DDA089C8D1E ~	2~	G20 ~	B ~	TT5515~	IS$$96191134674515 ~	0~	6240822	1	TT5515
NFCB 120-R30	12.00	3.20	6.40	1.50	30.00	1.00	12 ~	FCB-12 ~	-	-	0.150	0.080	~	V ~	71DDA089C8D1E ~	2~	G20 ~	B ~	TT5515~	IS$$125109954190776 ~	0~	6240758	1	TT5515
NFCB 160-R40	16.00	4.20	8.50	2.00	40.00	1.30	16 ~	FCB-16 ~	-	-	0.150	0.080	~	V ~	71DDA089C8D1E ~	2~	G20 ~	B ~	TT5515~	IS$$115429599161760 ~	0~	6240759	1	TT5515
NFCB 200-R50	20.00	5.20	10.70	2.50	50.00	1.60	20 ~	FCB-20 ~	-	-	0.150	0.080	~	V ~	71DDA089C8D1E ~	2~	G20 ~	B ~	TT5515~	IS$$106172470573365 ~	0~	6240760	1	TT5515
NFCB 250-R62.5	25.00	6.20	13.50	3.00	62.50	2.00	25 ~	FCB-25 ~	-	-	0.150	0.080	~	V ~	71DDA089C8D1E ~	2~	G20 ~	B ~	TT5515~	IS$$106076507475834 ~	0~	6240761	1	TT5515
NFCB 300-R75	30.00	7.20	16.30	3.50	75.00	2.40	30 ~	FCB-30 ~	-	-	0.200	0.080	~	V ~	71DDA089C8D1E ~	2~	G20 ~	B ~	TT5515~	IS$$125141389645560 ~	0~	6240762	1	TT5515
