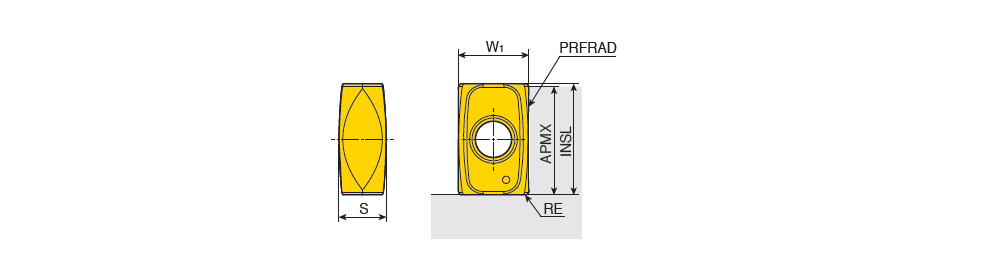

BRHU 06-L : Double-sided, four-corner barrel insert for profiling operations

Designation	W1	S	APMX	INSL	RE	PRFRAD	S1	S2	CE	Insert	fz (max)	fz (min)	ap (min)	ap (max)	SF	ClssID	ESP	CB	CEDC	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
BRHU 06R2002-L	4.20	2.80	6.40	6.60	0.20	20.00	6.00~	~	4~	SFB-BR06 ~	0.150	0.080	-	-	L ~	71DDA089C8D1E ~	G20 ~	L ~	4~	TT5515~	IS$$350063043666015 ~	BRHU 06 ~	0~	6237060		1		TT5515
