Home Page > Milling & Solid End mills > > BRHU 12-L

Milling & Solid End mills
Main Application

Related Tool

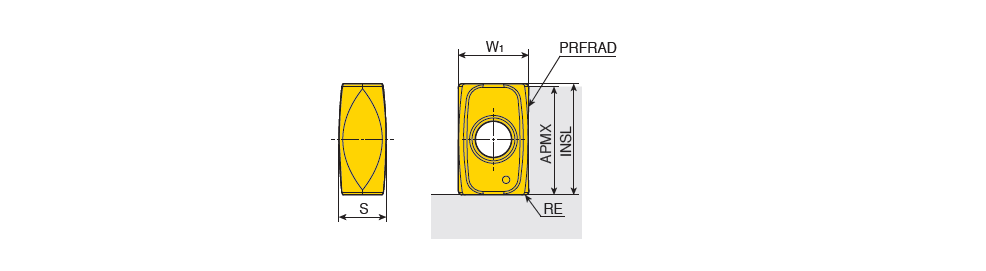

BRHU 12-L : Double-sided, four-corner barrel insert for profiling operations

Designation	W1	S	APMX	INSL	RE	S1	S2	CE	Insert	fz (max)	fz (min)	ap (min)	ap (max)	SF	ClssID	ESP	CB	CEDC	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
BRHU 12R3002-L	7.00	4.56	12.20	12.40	0.20	12.00~	~	4~	SFB-BR12 ~	0.200	0.080	-	-	L ~	71DDA089C8D1E ~	G20 ~	L ~	4~	TT5515~	IS$$272966054179284 ~	BRHU 12 ~	0~	6242867		1		TT5515
