TaeguTec Cutting Tools - Metal Working Tools - Hole Making -

SPMG ...-DG : Insert for T-Drill on the general application

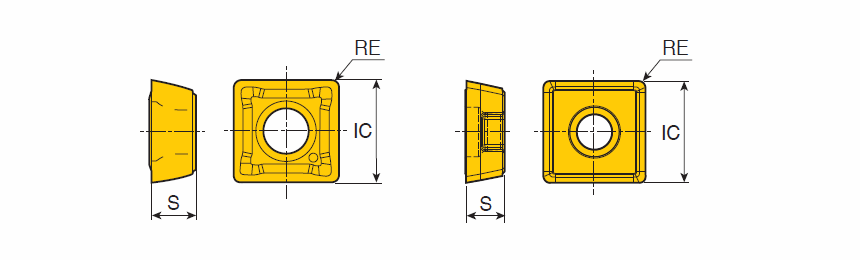

Designation	IC	S	RE	S1	CBMD	SC	ClssID	GRDMFG	IIC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SPMG 050204 DG	5.00	2.38	0.40	5.00~	DG ~	S ~	71DD68D829217 ~	TT7400~	IS$$427122629303904 ~	5517078	3	TT7400 TT8020 TT9030
SPMG 060204 DG	6.00	2.38	0.40	6.00~	DG ~	S ~	71DD68D829217 ~	TT7400~	IS$$647179688064042 ~	5516845	3	TT7400 TT8020 TT9030
SPMG 07T308 DG	7.94	3.97	0.80	7.00~	DG ~	S ~	71DD68D829217 ~	TT7400~	IS$$1427548118571160 ~	5516846	3	TT7400 TT8020 TT9030
SPMG 090408 DG	9.80	4.30	0.80	9.00~	DG ~	S ~	71DD68D829217 ~	TT7400~	IS$$1300230997598460 ~	5516847	3	TT7400 TT8020 TT9030
SPMG 110408 DG	11.50	4.80	0.80	11.00~	DG ~	S ~	71DD68D829217 ~	TT7400~	IS$$856578178807232 ~	5516848	3	TT7400 TT8020 TT9030
SPMG 120408 DG	12.70	4.76	0.80	12.00~	DG ~	S ~	71DD68D829217 ~	TT8020~	IS$$20506373226829 ~	6130187	2	TT8020 TT9030
SPMG 140512 DG	14.30	5.20	1.20	14.00~	DG ~	S ~	71DD68D829217 ~	TT7400~	IS$$454575420294515 ~	5516849	3	TT7400 TT8020 TT9030

TT9030: First choice for general purpose
TT8020: For unstable condition
TT7400: For high speed machining on a steel application (Peripheral ONLY)
Click the Better Suggestions icon to see more choices.
