TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

8D-TF20-R-11 : 20° Face mills with 8 cutting edges of double-sided Square inserts SQKU 11 for high feed machining

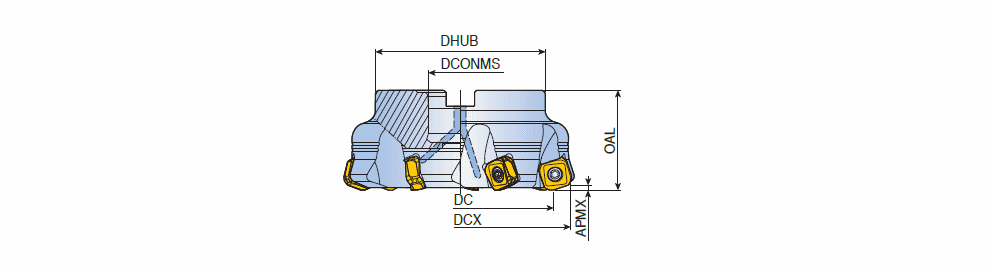

Designation	S2	Tool sty	DC	DCX	CICT	DCONMS	DHUB	OAL	APMX	d1		Arbor		Mtg. Ref	S1	D3	Rd	K	R/L	PD	Insert	MIID	ClssID	CCTMS	CCFMS	FF/RN	IIC	LTA	ZEFF	ZEFP	ZNP	GICAT
8D-TF20-450-22R-11	~	FACE MILL ~	50.00	63.50	4	22.00	45.00	40.00	1.80	0.00~	O ~	A	0.50	SH M10X30	11.00~	0.00~	0.00~	20.0~	~	RC ~	C8M-SQ11 ~	SQKU 1105 ANR-M	71E01A05B627B ~	FDA ~	02 ~	FF ~	IS$$701109547530651 ~	40.00~	4~	4~	4~	6247576
8D-TF20-563-22R-11	~	FACE MILL ~	63.00	76.50	5	22.00	47.00	50.00	1.80	0.00~	O ~	A	0.90	SH M10X30	11.00~	0.00~	0.00~	20.0~	~	RC ~	C8M-SQ11 ~	SQKU 1105 ANR-M	71E01A05B627B ~	FDA ~	02 ~	FF ~	IS$$701109547530651 ~	50.00~	5~	5~	5~	6247577
8D-TF20-680-27R-11	~	FACE MILL ~	80.00	93.50	6	27.00	70.00	50.00	1.80	0.00~	O ~	A	1.50	SH M12X35	11.00~	0.00~	0.00~	20.0~	~	RC ~	C8M-SQ11 ~	SQKU 1105 ANR-M	71E01A05B627B ~	FDA ~	02 ~	FF ~	IS$$701109547530651 ~	50.00~	6~	6~	6~	6247578
8D-TF20-8100-32R-11	~	FACE MILL ~	100.00	113.50	8	32.00	85.00	50.00	1.80	0.00~	O ~	A	2.20	LH M16X35	11.00~	0.00~	0.00~	20.0~	~	RF ~	C8M-SQ11 ~	SQKU 1105 ANR-M	71E01A05B627B ~	FDA ~	02 ~	FF ~	IS$$701109547530651 ~	50.00~	8~	8~	8~	6236371

-Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
