8D-TF20-R-14 : 20° Face mills with 8 cutting edges of double-sided Square inserts SQKU 14 for high feed machining

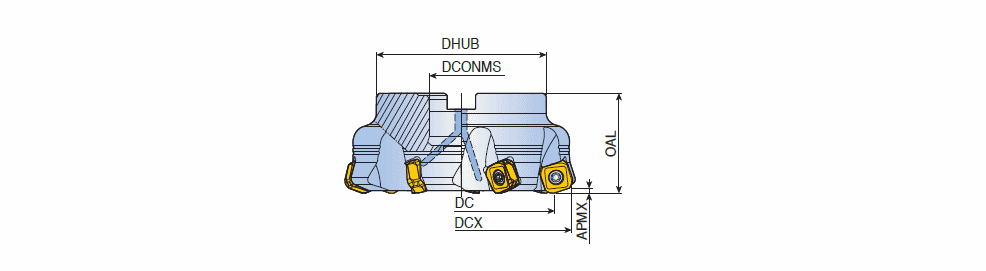

Designation	S2	Tool sty	DC	DCX	CICT	DCONMS	DHUB	OAL	APMX	d1		Arbor		Mtg. Ref	S1	D3	Rd	K	R/L	PD	Insert	MIID	ClssID	CCTMS	CCFMS	FF/RN	IIC	LTA	ZEFF	ZEFP	ZNP	GICAT
8D-TF20-563-22R-14	~	FACE MILL ~	63.00	80.60	5	22.00	47.00	50.00	2.50	0.00~	O ~	A	1.00	SH M10X30	14.00~	0.00~	0.00~	20.0~	~	RC ~	C8M-SQ14 ~	SQKU 1406 ANR-M	71E01A05B627B ~	FDA ~	02 ~	FF ~	IS$$702581505066558 ~	50.00~	5~	5~	5~	6247595
8D-TF20-680-27R-14	~	FACE MILL ~	80.00	97.60	6	27.00	70.00	50.00	2.50	0.00~	O ~	A	1.70	SH M12X35	14.00~	0.00~	0.00~	20.0~	~	RC ~	C8M-SQ14 ~	SQKU 1406 ANR-M	71E01A05B627B ~	FDA ~	02 ~	FF ~	IS$$702581505066558 ~	50.00~	6~	6~	6~	6247596
8D-TF20-7100-32R-14	~	FACE MILL ~	100.00	117.50	7	32.00	85.00	50.00	2.50	0.00~	O ~	A	2.50	LH M16X35	14.00~	0.00~	0.00~	20.0~	~	RC ~	C8M-SQ14 ~	SQKU 1406 ANR-M	71E01A05B627B ~	FDA ~	02 ~	FF ~	IS$$702581505066558 ~	50.00~	7~	7~	7~	6247597
8D-TF20-8125-40R-14	~	FACE MILL ~	120.00	142.50	8	40.00	85.00	63.00	2.50	0.00~	O ~	A	4.30	SH M20X40	14.00~	0.00~	0.00~	20.0~	~	RC ~	C8M-SQ14 ~	SQKU 1406 ANR-M	71E01A05B627B ~	FDA ~	02 ~	FF ~	IS$$702581505066558 ~	63.00~	8~	8~	8~	6247598

-Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
