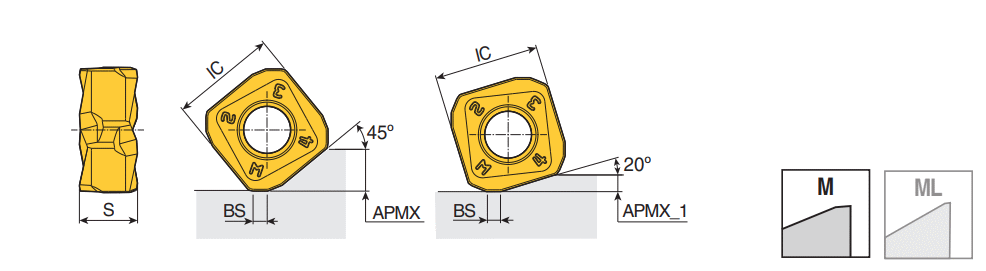

SQKU 14 ANR-M : Double-sided Square inserts with 8 cutting edges for roughing (45°) and high feed (20°) face milling and high feed machining.

Designation	IC	S	APMX	BS	S1	ap (min)	ap (max)	fz (max)	fz (min)	APMX_1	ap.min_1	ap.max_1	fz.max_1	fz.min_1	SF	Insert	CE	SC	ClssID	ESP	apmax MF	CB	CEDC	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SQKU 1406 ANR-M	14.50	7.80	6.00	2.00	14.00~	2.00	6.00	0.300	0.100	2.50	0.30	2.00	2.300	0.400	~	C8M-SQ14 ~	8~	S ~	71DD68D829217 ~	U65 ~	6.00~	M ~	8~	8525B ~	IS$$702581505066558 ~	SQKU 14 ~	0~	6259537		4		TT8525B TT9080 TT6080 TT2510

For 20° facing,please refer to the parameters below
-APMX_1
-ap.min_1, ap.max_1
-fz.max_1, fz.min_1
