TaeguTec Cutting Tools - Metal Working Tools - Turning -

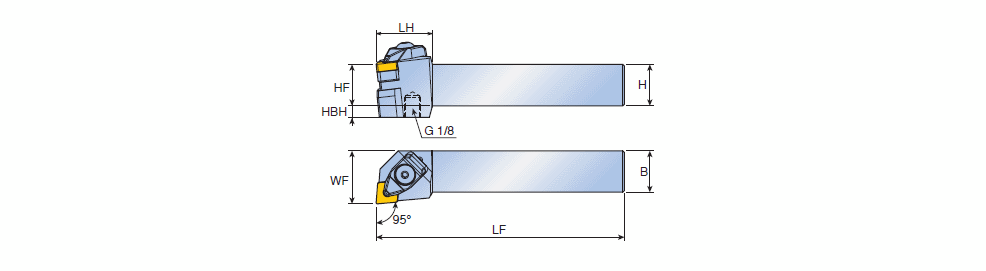

TCLNR/L-TB : T-holders for high pressure coolant with 95° approach angle & CN..inserts

Designation	H	HF	B	LF	LH	WF	HBH	MIID	d	t	Kr	K	CL	Tool typ	R/L	ClssID	IIC	GICAT	GIREM	giic	GICODE
TCLNL 2525 M12-TB	25.0	25.0	25.0	150.00	32.0	32.00	7.0	CNGA 120408	12.70~	4.76~	95~	95.0~	T-HOLDER-TB ~	SQUARE ~	L ~	71E01A0E85121 ~	IS$$1024254928735500 ~	6197674		0
TCLNR 2525 M12-TB	25.0	25.0	25.0	150.00	32.0	32.00	7.0	CNGA 120408	12.70~	4.76~	95~	95.0~	T-HOLDER-TB ~	SQUARE ~	R ~	71E01A0E85121 ~	IS$$1024254928735500 ~	6197675		0
