Tooling System
Main Application
PRESET ER-JET(SCREW) : Preset screw with oil holes for ER sealed collets(optional).

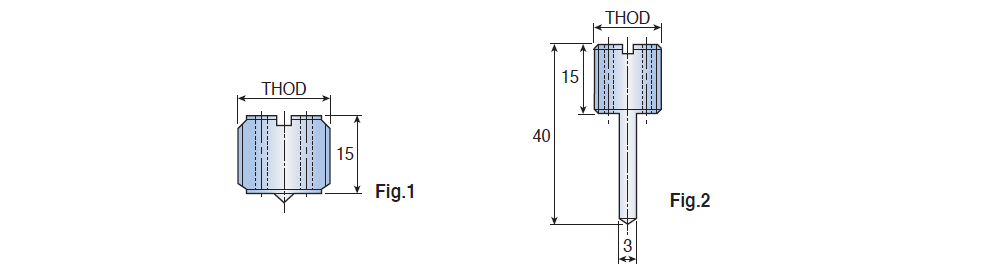

  DesignationS1 THOD Fig Mtg. Ref GICATGIREMgiicGICODE
  PRESET ER-JET 8X1.25 8.00~M8X1.25 1 ~4653068 0
  PRESET ER-JET 10X1.5 10.00~M10X1.5 1 ~4650814 0
  PRESET ER-JET 12X1.75 12.00~M12X1.75 1 ~4650815 0
  PRESET ER-JET 12X1.75L 12.00~M12X1.75 2 ~4650816 0
  PRESET ER-JET 16X2 16.00~M16X2 1 ~4650817 0
  PRESET ER-JET 16X2L 16.00~M16X2 2 ~4650818 0
  PRESET ER-JET 18X1.5 18.00~M18X1.5 1 ~4650819 0
  PRESET ER-JET 18X1.5L 18.00~M18X1.5 2 ~4650820 0
  PRESET ER-JET 22X1.5 22.00~M22X1.5 1 ~4650821 0
  PRESET ER-JET 22X1.5L 22.00~M22X1.5 2 ~4650822 0
  PRESET ER-JET 28X1.5 28.00~M28X1.5 1 ~4650823 0
