TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

CVHT 0502PNR-AL : Unique high positive ground inserts with very sharp two cutting edges and rigid V shape for aluminum machining.

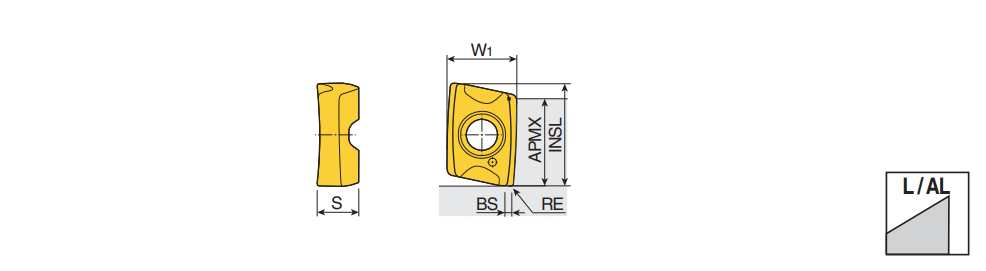

Designation	INSL	W1	S	APMX	BS	RE	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	CE	SC	ClssID	ESP	CB	CEDC	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
CVHT 0502PNR-AL	6.30	4.10	2.60	5.00	0.30	0.20	5.00~	0.50	4.00	0.070	0.030	M6 ~	MILS-CV05 ~	2~	C ~	71DDA089C8D1E ~	G10 ~	~	0~	UF10 ~	IS$$1208898975928941 ~	CVK(H)T 05 ~	0~	6213562		1		UF10
