TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

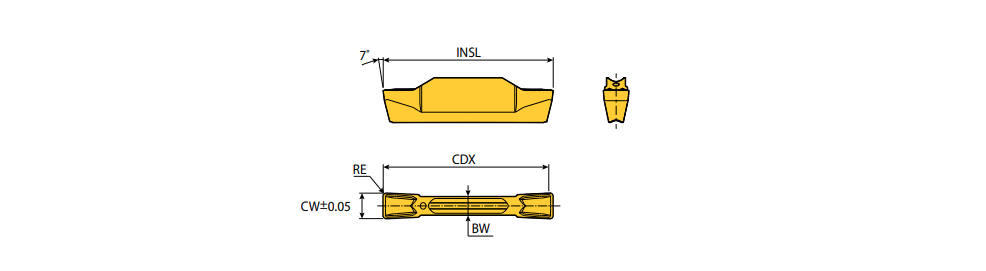

TDCT : Double-ended pressed type multi functional inserts for general use in parting, grooving and turning machining

Designation	SSC	CW	RE	BW	INSL	CDX	S1	SC	R	ap (min)	ap (max)	ft (min)	ft (max)	fg (min)	fg (max)	CB1	W	W+-toler	ClssID	HAND	CEDC	COATP	CB	GRDMFG	IIC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TDCT 2E-0.3	2	2.00	0.30	1.70	20.00	19.00	2.00~	L ~	0.000~	0.40	1.20	0.12	0.18	0.05	0.18	M6E ~	2.00~	0.05~	71DDA089C8D1E ~	N ~	2~	PVD ~	CT ~	K10 ~	IS$$1168906343253168 ~	6261128	4	TT8020 TT9080 K10 TT6080
TDCT 3E-0.3	3	3.00	0.30	2.20	20.00	19.00	3.00~	L ~	0.000~	0.40	1.80	0.15	0.19	0.07	0.25	M6E ~	3.00~	0.05~	71DDA089C8D1E ~	N ~	2~	PVD ~	CT ~	K10 ~	IS$$2056821345919082 ~	6261133	4	TT8020 TT9080 K10 TT6080
TDCT 4E-0.4	4	4.00	0.40	3.00	20.00	19.00	4.00~	L ~	0.000~	0.50	2.40	0.18	0.24	0.08	0.30	M6E ~	4.00~	0.05~	71DDA089C8D1E ~	N ~	2~	PVD ~	CT ~	K10 ~	IS$$1539718134533175 ~	6261135	3	TT9080 K10 TT6080
TDCT 5E-0.4	5	5.00	0.40	4.00	25.00	24.00	5.00~	L ~	0.000~	0.50	3.00	0.20	0.30	0.09	0.35	M6E ~	5.00~	0.05~	71DDA089C8D1E ~	N ~	2~	PVD ~	CT ~	K10 ~	IS$$983758445705840 ~	6261137	3	TT9080 K10 TT6080
TDCT 6E-0.4	6	6.00	0.40	5.00	25.00	24.00	6.00~	L ~	0.000~	0.50	3.60	0.22	0.36	0.12	0.40	M6E ~	6.00~	0.05~	71DDA089C8D1E ~	N ~	2~	PVD ~	CT ~	K10 ~	IS$$884964253522797 ~	6261139	3	TT9080 K10 TT6080
