TEBN-M-06CH : CERAMICSFEED modular heads with T-FLEXTEC adaptation for high speed machining of super alloys

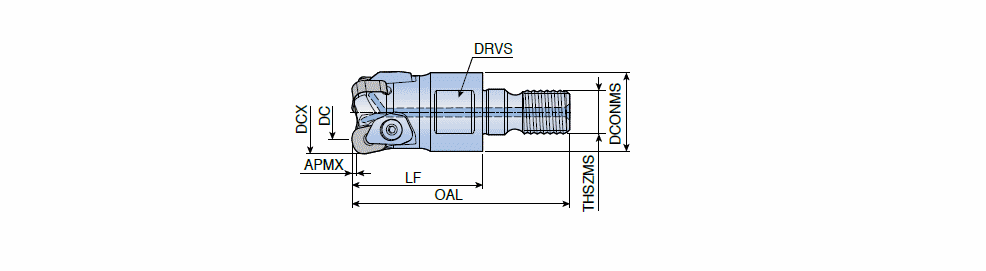

Designation	Tool sty	DCX	CICT	DC	DCONMS	LF	OAL	THSZMS	APMX	Air hole	DRVS		S1	R/L	Rd	Arbor	PD	Insert	ClssID	MIID	K	CCTMS	CCFMS	FF/RN	IIC	LTA	TQ_3	ZEFF	ZEFP	ZNP	GICAT
TEBN 216-M08-06CH	MODULAR ~	16.00	2	8.60	13.00	25.00	42.50	M08	1.00	O	10.0	0.03	6.00~	~	0.00~	~	RC ~	CSF-BN06 ~	71E01A05D27A8 ~	BNGX 0603 CH-E04	0.0~	SAI ~	02 ~	FF ~	IS$$311686499491062 ~	25.00~	0~	2~	2~	2~	6247543
TEBN 320-M10-06CH	MODULAR ~	20.00	3	12.50	18.00	30.00	50.00	M10	1.00	O	15.0	0.06	6.00~	~	0.00~	~	RF ~	CSF-BN06 ~	71E01A05D27A8 ~	BNGX 0603 CH-E04	0.0~	SAI ~	02 ~	FF ~	IS$$311686499491062 ~	30.00~	0~	3~	3~	3~	6247544
TEBN 425-M12-06CH	MODULAR ~	25.00	4	17.40	21.00	35.00	57.00	M12	1.00	O	17.0	0.10	6.00~	~	0.00~	~	RF ~	CSF-BN06 ~	71E01A05D27A8 ~	BNGX 0603 CH-E04	0.0~	SAI ~	02 ~	FF ~	IS$$311686499491062 ~	35.00~	0~	4~	4~	4~	6247545
TEBN 532-M16-06CH	MODULAR ~	32.00	5	24.30	29.00	43.00	68.00	M16	1.00	O	25.0	0.22	6.00~	~	0.00~	~	F ~	CSF-BN06 ~	71E01A05D27A8 ~	BNGX 0603 CH-E04	0.0~	SAI ~	02 ~	FF ~	IS$$311686499491062 ~	43.00~	0~	5~	5~	5~	6247546

Matched with T-FLEXTEC holder
Use only air(coolant is prohibited)
