TaeguTec Cutting Tools - Metal Working Tools - Hole Making -

LCD ...-P+ : SPADERUSH Head changeable drilling inserts with Self-Centering for high productivity of large diameter

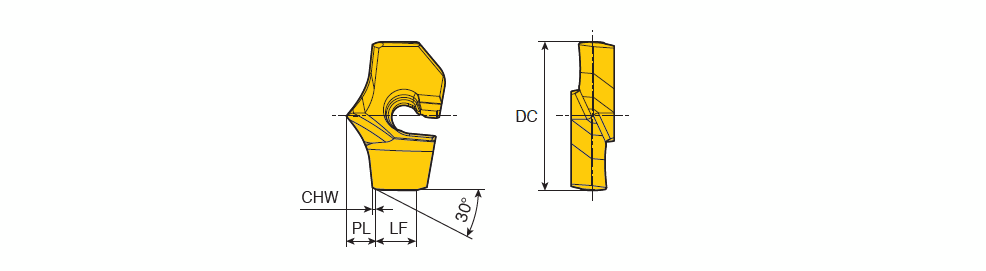

Designation	DC	PL	LF	CHW	SSC	CB	Min Tol	Max Tol	SC	ClssID	GRDMFG	IIC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
LCD-200-P+	20.00	4.55	5.83	0.86	20	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$113860795294950 ~	6300967	1	TT9080
LCD-205-P+	20.50	4.58	5.60	0.86	20	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$113860795294950 ~	6324952	1	TT9080
LCD-210-P+	21.00	4.60	5.36	0.86	21	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$115033787407700 ~	6300968	1	TT9080
LCD-215-P+	21.50	4.63	5.13	0.86	21	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$115033787407700 ~	6324961	1	TT9080
LCD-220-P+	22.00	4.92	6.21	0.86	22	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$114653327002996 ~	6300969	1	TT9080
LCD-225-P+	22.50	4.95	5.98	0.86	22	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$114653327002996 ~	6324989	1	TT9080
LCD-230-P+	23.00	4.97	5.74	0.86	23	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$114653376449184 ~	6300970	1	TT9080
LCD-235-P+	23.50	5.00	5.51	0.86	23	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$114653376449184 ~	6324998	1	TT9080
LCD-240-P+	24.00	5.30	5.93	0.86	24	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$114653438280010 ~	6300971	1	TT9080
LCD-245-P+	24.50	5.33	5.70	0.86	24	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$114653438280010 ~	6325011	1	TT9080
LCD-250-P+	25.00	5.35	5.46	0.86	25	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$113222629751550 ~	6300972	1	TT9080
LCD-255-P+	25.50	5.38	5.23	0.86	25	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$113222629751550 ~	6325020	1	TT9080
LCD-260-P+	26.00	5.67	7.39	0.86	26	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$49752012372080 ~	6300973	1	TT9080
LCD-265-P+	26.50	5.70	7.16	0.86	26	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$49752012372080 ~	6172681	1	TT9080
LCD-270-P+	27.00	5.72	6.92	0.86	27	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$112873317413626 ~	6300974	1	TT9080
LCD-275-P+	27.50	5.75	6.69	0.86	27	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$112873317413626 ~	6325037	1	TT9080
LCD-280-P+	28.00	5.73	7.26	0.86	28	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$113181682036884 ~	6300975	1	TT9080
LCD-285-P+	28.50	5.76	7.03	0.86	28	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$113181682036884 ~	6325046	1	TT9080
LCD-290-P+	29.00	5.78	6.79	0.86	29	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$113149707736400 ~	6300976	1	TT9080
LCD-295-P+	29.50	5.81	6.56	0.86	29	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$113149707736400 ~	6325055	1	TT9080
LCD-300-P+	30.00	6.08	9.17	0.86	30	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$112697484665592 ~	6300977	1	TT9080
LCD-305-P+	30.50	6.11	8.94	0.86	30	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$112697484665592 ~	6325064	1	TT9080
LCD-310-P+	31.00	6.13	8.70	0.86	31	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$113181755743962 ~	6300978	1	TT9080
LCD-315-P+	31.50	6.16	8.47	0.86	31	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$113181755743962 ~	6325073	1	TT9080
LCD-320-P+	32.00	6.43	9.18	0.86	32	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$113181792597510 ~	6300979	1	TT9080
LCD-325-P+	32.50	6.46	8.95	0.86	32	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$113181792597510 ~	6325082	1	TT9080
LCD-330-P+	33.00	6.48	8.71	0.86	33	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$113181829451064 ~	6301842	1	TT9080
LCD-335-P+	33.50	6.51	8.48	0.86	33	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$113181829451064 ~	6175414	1	TT9080
LCD-340-P+	34.00	6.53	8.24	0.86	34	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$113181872438208 ~	6300980	1	TT9080
LCD-345-P+	34.50	6.56	8.01	0.86	34	P+ ~	0~	0~	~	72550E1361C6C ~	TT9080~	IS$$113181872438208 ~	6325099	1	TT9080
