Hole Making
Main Application

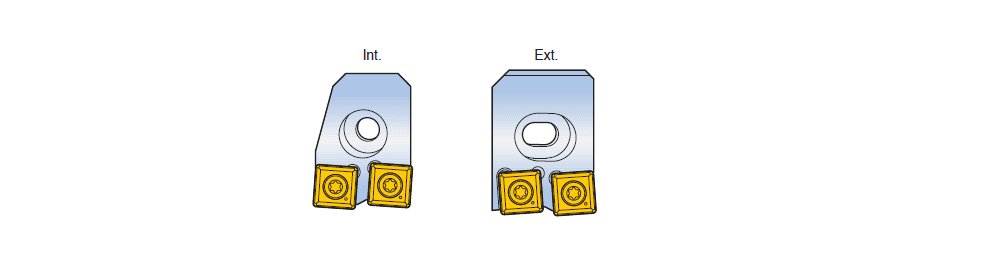

TOP CA-SOMT : Cartridges Used for Large Diameter Drills with SOMT inserts


  DesignationS1 Cartrid. d Range GICATGIREMgiicGICODE
  TOP 09CA-P1 1.00~Ext. 51-55 6101681 0
  TOP 09CA-C1 1.00~Int. 51-55 6101680 0
  TOP 11CA-P1 2.00~Ext. 56-60 6101685 0
  TOP 11CA-C1 2.00~Int. 56-60 6101684 0
  TOP 11CA-P2 3.00~Ext. 61-65 6101687 0
  TOP 11CA-C2 3.00~Int. 61-65 6101686 0
  TOP 11CA-P3 4.00~Ext. 66-70 6134920 0
  TOP 11CA-C3 4.00~Int. 66-70 6134919 0
  TOP 13CA-P1 5.00~Ext. 71-75 6101689 0
  TOP 13CA-C1 5.00~Int. 71-75 6101688 0
  TOP 13CA-P2 6.00~Ext. 76-80 6132011 0
  TOP 13CA-C2 6.00~Int. 76-80 6132010 0
