Hole Making
Main Application

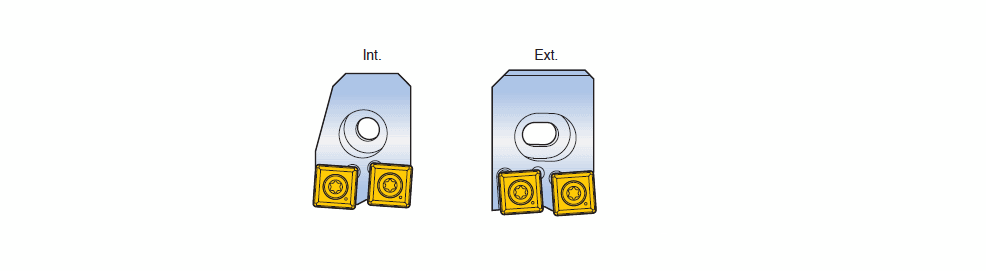

TDR CA-SPMG : Cartridges Used for Large Diameter Drills with SPMG inserts


  DesignationS1 Cartrid. d Range GICATGIREMgiicGICODE
  TDR 07CA-P1-T 1.00~Ext. 51-53 4353170 0
  TDR 07CA-C1-T 2.00~Int. 51-53 4353168 0
  TDR 09CA-P1-T 3.00~Ext. 57-62 4353111 0
  TDR 09CA-C1-T 4.00~Int. 57-62 4353112 0
  TDR 07CA-P2-T 5.00~Ext. 54-56 4353171 0
  TDR 07CA-C2-T 6.00~Int. 54-56 4353169 0
  TDR 09CA-P2-T 7.00~Ext. 63-66 4353113 0
  TDR 09CA-C2-T 8.00~Int. 63-66 4353114 0
  TDR 11CA-P1-T 9.00~Ext. 67-73 4353115 0
  TDR 11CA-C1-T 10.00~Int. 67-73 4353116 0
  TDR 12CA-P2-T 11.00~Ext. 74-80 4353117 0
  TDR 12CA-C2-T 12.00~Int. 74-80 4353118 0
