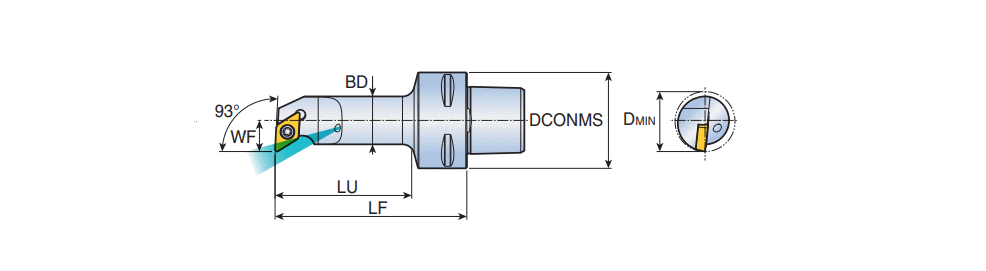

C*-SDUCR/L-11 : C-ADAPTER Screw type boring bars for positive 55° Rhombicor inserts of 7° clearance angle with 93° approach angle

Designation	SS	DCONMS	LF	LU	WF	BD	DMIN		d	t	Kr	K	CL	Tool typ	R/L	ClssID	MIID	IIC	GICAT
C4-SDUCL-13080-11	40	40.00	80.00	57.0	13.00	20.00	25.00	0.36	9.52~	3.97~	30~	93.0~	SCREW ~	C-ADAPTER ~	L	71E01A0EAF067 ~	DCMT 11T308 MT	IS$$1519702245489130 ~	6249885
C4-SDUCR-13080-11	40	40.00	80.00	57.0	13.00	20.00	25.00	0.36	9.52~	3.97~	30~	93.0~	SCREW ~	C-ADAPTER ~	R	71E01A0EAF067 ~	DCMT 11T308 MT	IS$$1519702245489130 ~	6248353
C5-SDUCL-13080-11	50	50.00	80.00	56.0	13.00	20.00	25.00	0.55	9.52~	3.97~	30~	93.0~	SCREW ~	C-ADAPTER ~	L	71E01A0EAF067 ~	DCMT 11T308 MT	IS$$1519702245489130 ~	6249886
C5-SDUCR-13080-11	50	50.00	80.00	56.0	13.00	20.00	25.00	0.55	9.52~	3.97~	30~	93.0~	SCREW ~	C-ADAPTER ~	R	71E01A0EAF067 ~	DCMT 11T308 MT	IS$$1519702245489130 ~	6248354
