TaeguTec Cutting Tools - Metal Working Tools - Turning -

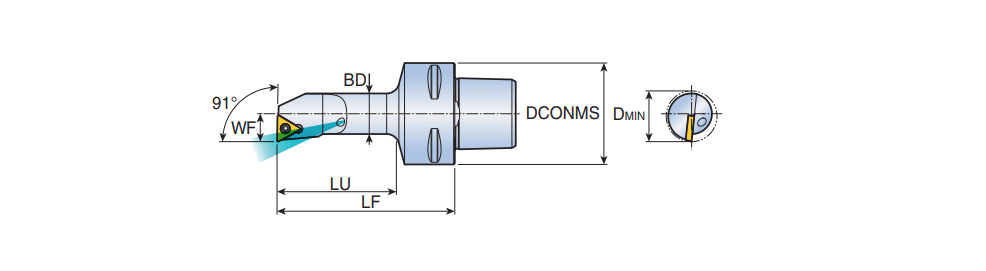

C*-STFCR/L-11 : C-ADAPTER Screw type boring bars for positive Triangularfor inserts of 7° clearance angle with 91° approach angle

Designation	SS	DCONMS	LF	LU	WF	BD	DMIN		d	t	Kr	K	CL	Tool typ	R/L	ClssID	MIID	IIC	GICAT
C4-STFCL-11070-1102	40	40.00	70.00	47.0	11.00	16.00	20.00	0.32	6.35~	2.38~	0~	91.0~	SCREW ~	C-ADAPTER ~	L	71E01A0EAF067 ~	TCMT 110204 MT	IS$$500562293307948 ~	6249887
C4-STFCR-11070-1102	40	40.00	70.00	47.0	11.00	16.00	20.00	0.32	6.35~	2.38~	0~	91.0~	SCREW ~	C-ADAPTER ~	R	71E01A0EAF067 ~	TCMT 110204 MT	IS$$500562293307948 ~	6248355
C5-STFCL-11070-1102	50	50.00	70.00	46.0	11.00	16.00	20.00	0.50	6.35~	2.38~	0~	91.0~	SCREW ~	C-ADAPTER ~	L	71E01A0EAF067 ~	TCMT 110204 MT	IS$$500562293307948 ~	6249888
C5-STFCR-11070-1102	50	50.00	70.00	46.0	11.00	16.00	20.00	0.50	6.35~	2.38~	0~	91.0~	SCREW ~	C-ADAPTER ~	R	71E01A0EAF067 ~	TCMT 110204 MT	IS$$500562293307948 ~	6248356
