TaeguTec Cutting Tools - Metal Working Tools - Turning -

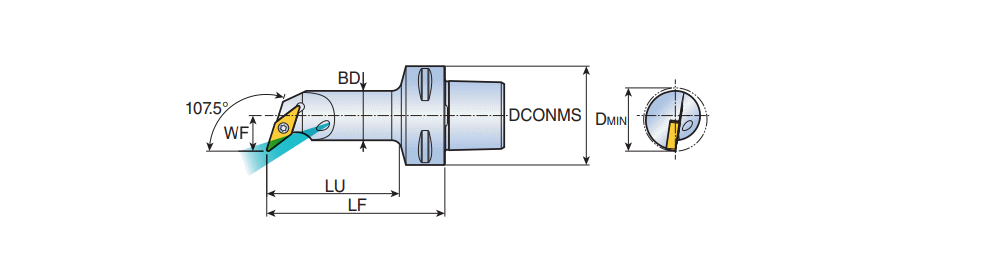

C*-SVQBR/L-16 : C-ADAPTER Screw type boring bars for positive 35° Rhombicor inserts of 5° clearance angle with 107.5 approach angle

Designation	SS	DCONMS	LF	LU	WF	BD	DMIN		d	t	Kr	K	CL	Tool typ	R/L	ClssID	MIID	IIC	GICAT
C4-SVQBL-18090-16	40	40.00	90.00	68.0	18.00	25.00	32.00	0.45	9.52~	4.76~	35~	108.0~	SCREW ~	C-ADAPTER ~	L	71E01A0EAF067 ~	VBMT 160408 MT	IS$$974204253037744 ~	6249889
C4-SVQBR-18090-16	40	40.00	90.00	68.0	18.00	25.00	32.00	0.45	9.52~	4.76~	35~	108.0~	SCREW ~	C-ADAPTER ~	R	71E01A0EAF067 ~	VBMT 160408 MT	IS$$974204253037744 ~	6248357
C5-SVQBL-18090-16	50	50.00	90.00	67.0	18.00	25.00	32.00	0.63	9.52~	4.76~	35~	108.0~	SCREW ~	C-ADAPTER ~	L	71E01A0EAF067 ~	VBMT 160408 MT	IS$$974204253037744 ~	6249890
C5-SVQBR-18090-16	50	50.00	90.00	67.0	18.00	25.00	32.00	0.63	9.52~	4.76~	35~	108.0~	SCREW ~	C-ADAPTER ~	R	71E01A0EAF067 ~	VBMT 160408 MT	IS$$974204253037744 ~	6248358
