TCDM...-M12-3D : DRILL-RUSH head exchangeable & modular type drill holders

Drilling depth: 3xdiameter

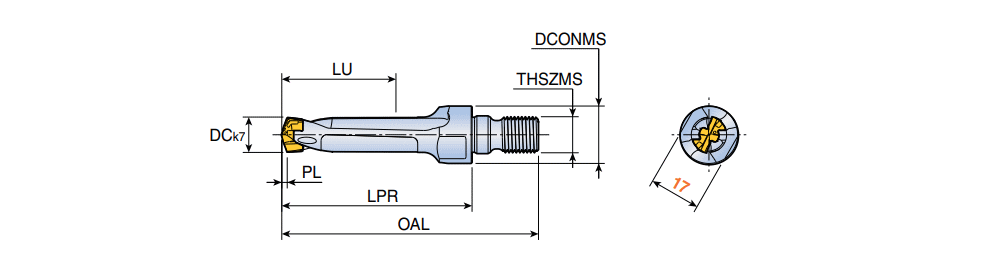

Designation	Tool sty	DCN	DCX	DCONMS	LU	LPR	PL	OAL	THSZMS	SSC	CL key	MIID		Machines	Zeff	Min Tol	Max Tol	Shank	ClssID	CICT	CCFMS	CCTMS	IIC	IIC_2	IIC_3	LTA	GICAT
TCDM 060-064-M12-3D	MODULAR ~	6.00	6.40	19.00	25.5	42.00	1.00	64.00	M12	6	K TCD D060-D099	TCD-060	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$452996933712648 ~	~	~	41.00~	6247271
TCDM 065-069-M12-3D	MODULAR ~	6.50	6.90	19.00	27.2	44.30	1.20	66.30	M12	6.5	K TCD D060-D099	TCD-065	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$414828823449393 ~	~	~	43.10~	6247735
TCDM 070-074-M12-3D	MODULAR ~	7.00	7.40	19.00	28.5	45.60	1.00	67.60	M12	7	K TCD D060-D099	TCD-070	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$217942683788011 ~	~	~	44.60~	6247736
TCDM 075-079-M12-3D	MODULAR ~	7.50	7.90	19.00	30.1	47.60	1.10	69.60	M12	7	K TCD D060-D099	TCD-070	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$157885993804540 ~	~	~	46.50~	6247738
TCDM 080-084-M12-3D	MODULAR ~	8.00	8.40	19.00	31.7	49.40	1.20	71.40	M12	8	K TCD D060-D099	TCD-080	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$202087646801964 ~	~	~	48.20~	6247739
TCDM 085-089-M12-3D	MODULAR ~	8.50	8.90	19.00	33.3	50.40	1.30	72.40	M12	8	K TCD D060-D099	TCD-080	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$122008454425676 ~	IS$$132276582499964 ~	~	49.10~	6247741
TCDM 090-094-M12-3D	MODULAR ~	9.00	9.40	19.00	34.9	52.80	1.40	74.80	M12	9	K TCD D060-D099	TCD-090	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$182057656855713 ~	~	~	51.40~	6247742
TCDM 095-099-M12-3D	MODULAR ~	9.50	9.90	19.00	36.4	54.80	1.40	76.80	M12	9	K TCD D060-D099	TCD-090	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$122003644051024 ~	~	~	53.40~	6247743
TCDM 100-104-M12-3D	MODULAR ~	10.00	10.40	19.00	38.0	56.20	1.50	78.20	M12	10	K TCD D100-D199	TCD-100	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$172134102160560 ~	IS$$182398426472920 ~	~	54.70~	6247113
TCDM 105-109-M12-3D	MODULAR ~	10.50	10.90	19.00	39.6	58.20	1.60	80.20	M12	10	K TCD D100-D199	TCD-100	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$112375841840570 ~	IS$$152125586559650 ~	~	56.60~	6247745
TCDM 110-114-M12-3D	MODULAR ~	11.00	11.40	19.00	41.2	59.60	1.70	81.60	M12	11	K TCD D100-D199	TCD-110	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$152125774110737 ~	~	~	57.90~	6247747
TCDM 115-119-M12-3D	MODULAR ~	11.50	11.90	19.00	42.8	61.60	1.80	83.60	M12	11	K TCD D100-D199	TCD-110	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$112376014506660 ~	IS$$152126405445212 ~	~	59.80~	6247748
TCDM 120-124-M12-3D	MODULAR ~	12.00	12.40	19.00	44.3	63.00	1.80	85.00	M12	12	K TCD D100-D199	TCD-120	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$152125943321430 ~	IS$$162390277245906 ~	~	61.20~	6247750
TCDM 125-129-M12-3D	MODULAR ~	12.50	12.90	19.00	45.9	64.00	1.90	86.00	M12	12	K TCD D100-D199	TCD-120	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$131608498533070 ~	IS$$171363649314758 ~	~	62.10~	6247751
TCDM 130-134-M12-3D	MODULAR ~	13.00	13.40	19.00	47.5	66.60	2.00	88.60	M12	13	K TCD D100-D199	TCD-130	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$161803728135751 ~	~	~	64.60~	6247752
TCDM 135-139-M12-3D	MODULAR ~	13.50	13.90	19.00	49.1	68.60	2.10	90.60	M12	13	K TCD D100-D199	TCD-130	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$112376359839224 ~	IS$$152126838854952 ~	~	66.50~	6247754
TCDM 140-144-M12-3D	MODULAR ~	14.00	14.40	19.00	50.6	70.20	2.10	92.20	M12	14	K TCD D100-D199	TCD-140	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$172430828967540 ~	IS$$201915292229508 ~	IS$$212179090997874 ~	68.10~	6247755
TCDM 145-149-M12-3D	MODULAR ~	14.50	14.90	19.00	52.2	72.20	2.20	94.20	M12	14	K TCD D100-D199	TCD-140	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$162167141685650 ~	IS$$201915403314355 ~	~	70.00~	6247756
TCDM 150-159-M12-3D	MODULAR ~	15.00	15.90	19.00	53.8	73.70	2.30	95.70	M12	15	K TCD D100-D199	TCD-150	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$132134388972960 ~	~	~	71.40~	6247759
TCDM 160-169-M12-3D	MODULAR ~	16.00	16.90	19.00	56.9	77.30	2.40	99.30	M12	16	K TCD D100-D199	TCD-160	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$132132268261140 ~	~	~	74.90~	6247272
TCDM 170-179-M12-3D	MODULAR ~	17.00	17.90	19.00	60.1	80.90	2.60	102.90	M12	17	K TCD D100-D199	TCD-170	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$132149509887921 ~	IS$$142413898286361 ~	~	78.30~	6247761
TCDM 180-189-M12-3D	MODULAR ~	18.00	18.90	19.00	63.2	84.50	2.70	106.50	M12	18	K TCD D100-D199	TCD-180	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$132148942556094 ~	~	~	81.80~	6247762
TCDM 190-199-M12-3D	MODULAR ~	19.00	19.90	19.00	66.4	88.00	2.90	110.00	M12	19	K TCD D100-D199	TCD-190	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$132314423876047 ~	~	~	85.10~	6247764
TCDM 200-209-M12-3D	MODULAR ~	20.00	20.90	19.00	69.5	91.60	3.00	113.60	M12	20	K TCD D200-D269	TCD-200	~	~	0~	0~	0~	~	71E01A05D27A8 ~	1~	2 ~	SAI ~	IS$$132203784445512 ~	~	~	88.60~	6247766
