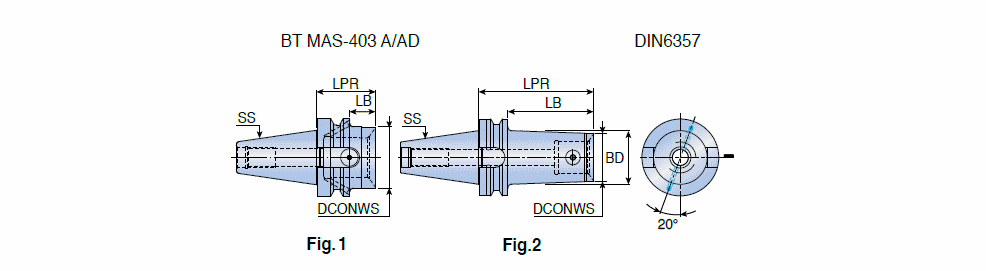

BT-FC-MB : MB Modular connection system with BT MAS-403 taper shanks


 IT_RUN-OUT A0.003  IT_TAPER SHANK GRADE  IT_SURFACE HARDNESS 58~60HRC  IT_N5
  DesignationS1 SS DCONWS LPR BD LB CRKS Fig OAL LS CCTMS CCFMS CCTWS CCFWS ISYC LTA GICATGIREMgiicGICODE
  BT40 FC MB50 40.00~40 50.0048.00-21.00M16 10.90113.40~66.4~SKG ~51 ~IMB ~01 ~ ~48.00~6114406 0
  BT40 FC MB50X120 40.00~40 50.00120.00-93.00M16 21.90185.40~66.4~SKG ~57 ~IMB ~01 ~ ~0.00~6253125 0
  BT40 FC MB63 40.00~40 63.0066.00--M16 11.20131.40~66.4~SKG ~51 ~IMB ~01 ~ ~0.00~6114407 0
  BT50 FC MB50 50.00~50 50.0066.00-28.00M24 13.30167.80~103.3~SKG ~51 ~IMB ~01 ~ ~0.00~6114408 0
  BT50 FC MB50X120 50.00~50 50.00120.0060.0082.00M24 24.20221.80~103.3~SKG ~57 ~IMB ~01 ~ ~0.00~6231048 0
  BT50 FC MB63 50.00~50 63.0075.00-37.00M24 13.70176.80~103.3~SKG ~51 ~IMB ~01 ~ ~0.00~6114410 0
  BT50 FC MB63X150 50.00~50 63.00150.0070.00112.00M24 25.80251.80~103.3~SKG ~ ~IMB ~01 ~ ~150.00~6231049 0
  BT50 FC MB80 50.00~50 80.0075.00-37.00M24 14.00176.80~103.3~SKG ~ ~IMB ~01 ~ ~0.00~6114412 0
  BT50 FC MB80X180 50.00~50 80.00180.00-142.00M24 27.50281.80~103.3~SKG ~57 ~IMB ~01 ~ ~179.50~6114413 0
