TaeguTec Cutting Tools - Metal Working Tools - Reaming -

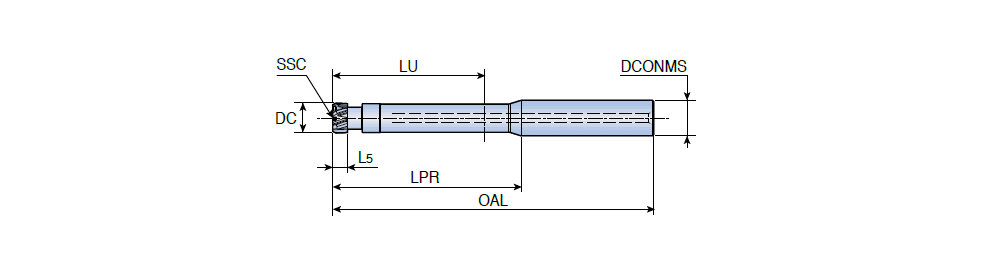

XR...-3T/5T-SO : Head changeable reamer holders for small diameter through hole

Designation	S1	DCN	DCX	SSC	DCONMS	L5	OAL	LU	LPR	Shank	ClssID	LTA	CCTMS	CCFMS	CCTWS	CCFWS	GICAT
XR-D08-3T-10S0	3.00~	8.000	8.999	8	10.00	4.00	81.00	28.0	36.00	C ~	71E01A07BC535 ~	32.00~	ZYL ~	01 ~	IMC ~	17 ~	6248015
XR-D09-3T-10S0	3.00~	9.000	9.999	9	10.00	4.50	85.50	31.5	40.50	C ~	71E01A07BC535 ~	36.00~	ZYL ~	01 ~	IMC ~	17 ~	6248016
XR-D10-3T-12S0	3.00~	10.000	10.999	10	12.00	5.00	89.00	35.0	44.00	C ~	71E01A07BC535 ~	39.00~	ZYL ~	01 ~	IMC ~	17 ~	6248017
XR-D11-3T-12S0	3.00~	11.000	11.999	11	12.00	5.50	92.50	38.5	47.50	C ~	71E01A07BC535 ~	42.00~	ZYL ~	01 ~	IMC ~	17 ~	6248018
XR-D12-3T-12S0	3.00~	12.000	12.999	12	12.00	6.00	95.00	42.0	50.00	C ~	71E01A07BC535 ~	44.00~	ZYL ~	01 ~	IMC ~	17 ~	6248019
XR-D08-5T-10S0	5.00~	8.000	8.999	8	10.00	4.00	97.00	44.0	52.00	C ~	71E01A07BC535 ~	48.00~	ZYL ~	01 ~	IMC ~	17 ~	6244048
XR-D09-5T-10S0	5.00~	9.000	9.999	9	10.00	4.50	103.50	49.5	58.50	C ~	71E01A07BC535 ~	54.00~	ZYL ~	01 ~	IMC ~	17 ~	6248021
XR-D10-5T-12S0	5.00~	10.000	10.999	10	12.00	5.00	109.00	55.0	64.00	C ~	71E01A07BC535 ~	59.00~	ZYL ~	01 ~	IMC ~	17 ~	6244049
XR-D11-5T-12S0	5.00~	11.000	11.999	11	12.00	5.50	114.50	60.5	69.50	C ~	71E01A07BC535 ~	64.00~	ZYL ~	01 ~	IMC ~	17 ~	6248022
XR-D12-5T-12S0	5.00~	12.000	12.999	12	12.00	6.00	119.00	66.0	74.00	C ~	71E01A07BC535 ~	68.00~	ZYL ~	01 ~	IMC ~	17 ~	6241126

Matched with XR...-BL reamer heads
