TaeguTec Cutting Tools - Metal Working Tools - Reaming -

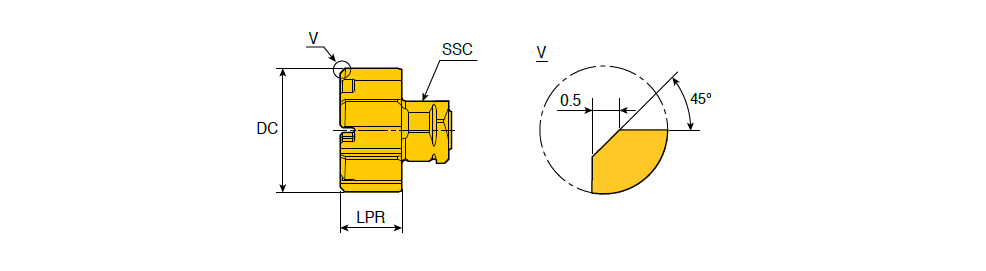

XR...-AS : Straight flute head changeable reamer heads for blind hole H7 tolerance reaming

Designation	DC	LPR	NOF	SSC	Flute ty	Edge ty	ClssID	LTA	CCTMS	CCFMS	GRDMFG	GICAT	giic	Grade & Vc Click on grade for cutting speed value
XR-08.000-AS	8.000	4.00	6	8	S	A	71E01A07BC535 ~	4.00~	IMC ~	17 ~	TT9030~	6237818	1	TT9030
XR-09.000-AS	9.000	4.50	6	9	S	A	71E01A07BC535 ~	4.50~	IMC ~	17 ~	TT9030~	6248024	1	TT9030
XR-10.000-AS	10.000	5.00	6	10	S	A	71E01A07BC535 ~	5.00~	IMC ~	17 ~	TT9030~	6340808	1	TT9030
XR-11.000-AS	11.000	5.50	6	11	S	A	71E01A07BC535 ~	5.50~	IMC ~	17 ~	TT9030~	6248025	1	TT9030
XR-12.000-AS	12.000	6.00	6	12	S	A	71E01A07BC535 ~	6.00~	IMC ~	17 ~	TT9030~	6217415	1	TT9030
