TaeguTec Cutting Tools - Metal Working Tools - Reaming -

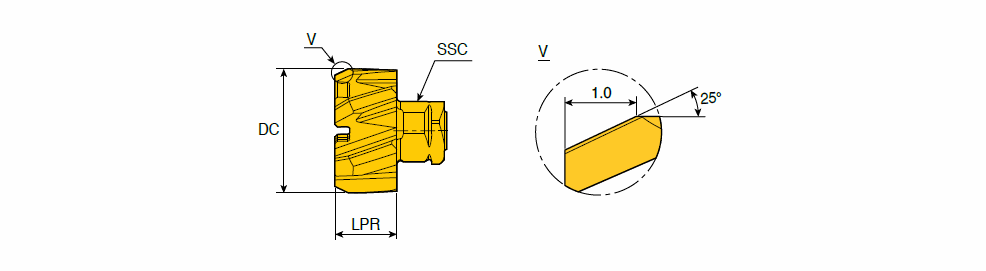

XR...-BL : Helical flute head changeable reamer heads for through hole H7 tolerance reaming

Designation	DC	LPR	NOF	SSC	Flute ty	Edge ty	ClssID	LTA	CCTMS	CCFMS	GRDMFG	GICAT	giic	Grade & Vc Click on grade for cutting speed value
XR-08.000-BL	8.000	4.00	6	8	L	B	71E01A07BC535 ~	4.00~	IMC ~	17 ~	TT9030~	6237819	1	TT9030
XR-09.000-BL	9.000	4.50	6	9	L	B	71E01A07BC535 ~	4.50~	IMC ~	17 ~	TT9030~	6248027	1	TT9030
XR-10.000-BL	10.000	5.00	6	10	L	B	71E01A07BC535 ~	5.00~	IMC ~	17 ~	TT9030~	6237817	1	TT9030
XR-11.000-BL	11.000	5.50	6	11	L	B	71E01A07BC535 ~	5.50~	IMC ~	17 ~	TT9030~	6248029	1	TT9030
XR-12.000-BL	12.000	6.00	6	12	L	B	71E01A07BC535 ~	6.00~	IMC ~	17 ~	TT9030~	6229613	1	TT9030
