TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

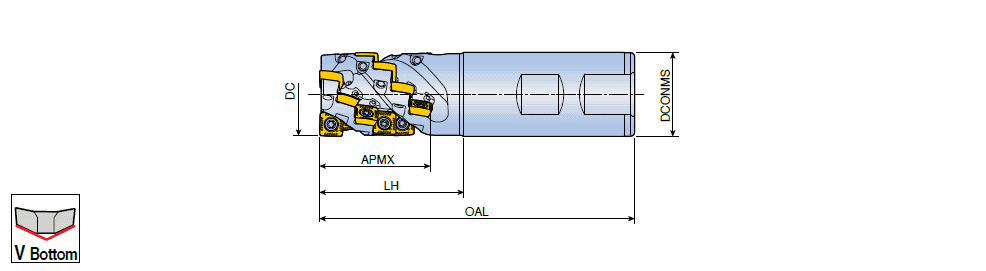

4S-TEF-09V : Extended flute end mills for exotic material machining with unique rigid V-bottom positive square SVKT 09 inserts of four convex cutting edges without mismatch

Designation	Tool sty	DC	NOF	CICT	DCONMS	OAL	LH	APMX	CSP		S1	Shank	Rd	e	PD	Insert	K	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	GICAT
4S-TEF-D25-21-W25-09V-2F	EXTENDED FLUTE ~	25.00	2	6	25.00	90.00	30.0	21.00	O	0.28	9.00~	W ~	0.00~	~	C ~	CVQ-SV09 ~	90.0~	71E01A05D27A8 ~	SVKT 093808-ML	ZYL ~	10 ~	IS$$546191905737048 ~	34.00~	6231369
4S-TEF-D32-28-W32-09V-3F	EXTENDED FLUTE ~	32.00	3	12	32.00	105.00	40.0	28.00	O	0.49	9.00~	W ~	0.00~	~	C ~	CVQ-SV09 ~	90.0~	71E01A05D27A8 ~	SVKT 093808-ML	ZYL ~	10 ~	IS$$546191905737048 ~	40.00~	6231380
4S-TEF-D32-42-W32-09V-3F	EXTENDED FLUTE ~	32.00	3	18	32.00	120.00	55.0	42.00	O	0.52	9.00~	W ~	0.00~	~	C ~	CVQ-SV09 ~	90.0~	71E01A05D27A8 ~	SVKT 093808-ML	ZYL ~	10 ~	IS$$546191905737048 ~	60.00~	6342111
4S-TEF-D40-27-W32-09V-4F	EXTENDED FLUTE ~	40.00	4	16	32.00	110.00	45.0	27.00	O	0.67	9.00~	W ~	0.00~	~	C ~	CVQ-SV09 ~	90.0~	71E01A05D27A8 ~	SVKT 093808-ML	ZYL ~	10 ~	IS$$546191905737048 ~	50.00~	6231381
4S-TEF-D40-41-W32-09V-4F	EXTENDED FLUTE ~	40.00	4	24	32.00	125.00	60.0	41.00	O	0.75	9.00~	W ~	0.00~	~	C ~	CVQ-SV09 ~	90.0~	71E01A05D27A8 ~	SVKT 093808-ML	ZYL ~	10 ~	IS$$546191905737048 ~	65.00~	6342112
