TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

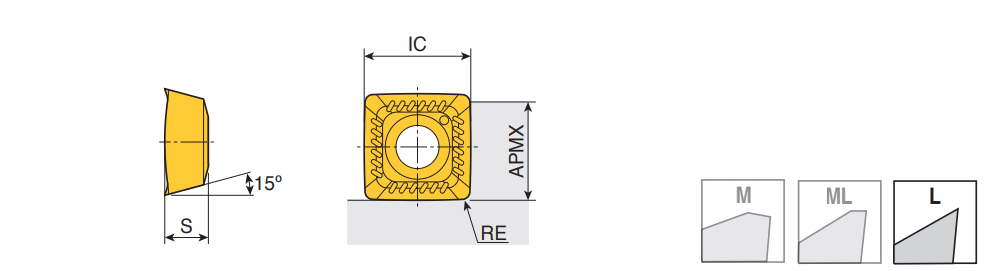

SVKT 09-L : Positive square inserts with 4 sharp convex cutting edges & secure V-bottom for extended flute cutters on machining of heat resistant super alloys

Designation	IC	S	RE	APMX	ap (min)	ap (max)	fz (max)	fz (min)	SF	S1	Insert	CE	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SVKT 093808-L	9.00	3.75	0.80	7.50	7.50	7.50	0.120	0.030	~	9.00~	CVQ-SV09 ~	4~	S ~	71DD68D829217 ~	U20 ~	L ~	TT8080~	IS$$546191905737048 ~	SVKT 09 ~	0~	6342868		2		TT8080 TT9080
SVKT 093816-L	9.00	3.75	1.60	7.00	7.00	7.00	0.120	0.030	~	9.00~	CVQ-SV09 ~	4~	S ~	71DD68D829217 ~	U20 ~	L ~	TT8080~	IS$$546191905737048 ~	SVKT 09 ~	0~	6342869		2		TT8080 TT9080
