TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

AVKT 1004-EL : High productivity single-sided, two-corner inserts with V-shape bottom contact for shoulder milling

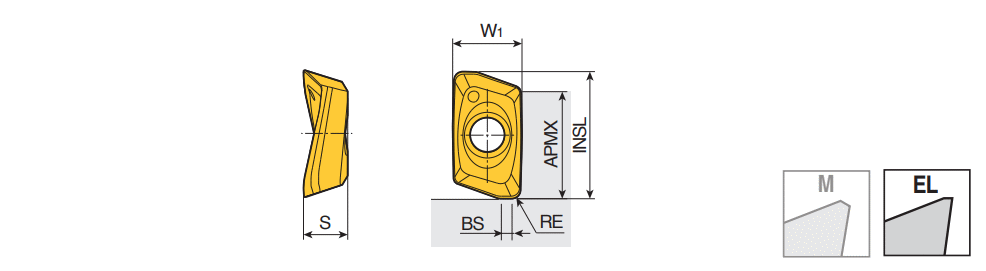

Designation	INSL	W1	S	APMX	BS	RE	S1	S2	CE	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	CB	CEDC	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
AVKT 100432R-EL	11.50	6.80	4.10	9.50	-	3.20	10.00~	~	0~	WM-AV 10 ~	2.50	8.00	0.060	0.030	M8 ~	A ~	71DD68D91938A ~	U70 ~	EL ~	2~	TT3535~	IS$$1281800253694311 ~	AVKT 10 ~	0~	6255914	2	TT8080 TT3535
AVKT 100416R-EL	12.10	6.80	4.30	9.90	0.60	1.60	10.00~	~	0~	WM-AV 10 ~	2.50	8.00	0.060	0.030	M8 ~	A ~	71DD68D91938A ~	U70 ~	EL ~	2~	TT3535~	IS$$1281800253694311 ~	AVKT 10 ~	0~	6255913	2	TT8080 TT3535
AVKT 1004 PER-EL	12.40	6.80	4.30	10.00	1.00	0.80	10.00~	~	0~	WM-AV 10 ~	2.50	8.00	0.060	0.030	M8 ~	A ~	71DD68D91938A ~	U70 ~	EL ~	2~	TT3535~	IS$$1281800253694311 ~	AVKT 10 ~	0~	6255912	2	TT8080 TT3535
