TaeguTec Cutting Tools - Metal Working Tools - Turning -

QH-TDUNR/L-VH : Exchangeable screw type boring heads for anti-vibration deep boring machining

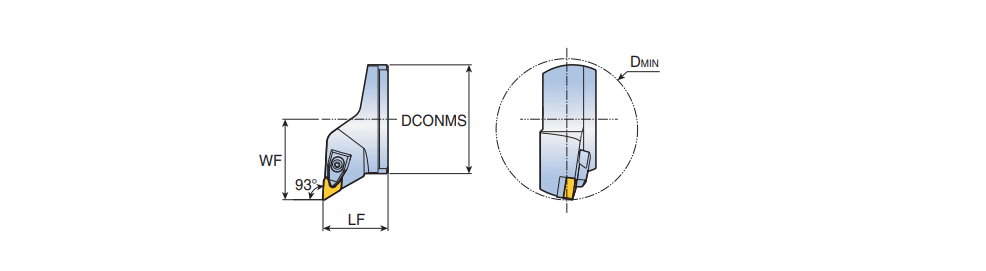

Designation	DCONMS	LF	WF	DMIN		R/L	d	t	Kr	K	CL	Tool typ	ClssID	MIID	IIC	GICAT
QH80-TDUNL-1504-VH	77.00	46.00	57.00	100.00	X ~	L ~	12.70~	6.35~	30~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DNGA 150408	~	6259674
QH80-TDUNL-1506-VH	77.00	46.00	57.00	100.00	X ~	L ~	12.70~	6.35~	30~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DNGA 150608	~	6262383
QH80-TDUNR-1504-VH	77.00	46.00	57.00	100.00	X ~	R ~	12.70~	6.35~	30~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DNGA 150408	~	6259675
QH80-TDUNR-1506-VH	77.00	46.00	57.00	100.00	X ~	R ~	12.70~	6.35~	30~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DNGA 150608	~	6262384
